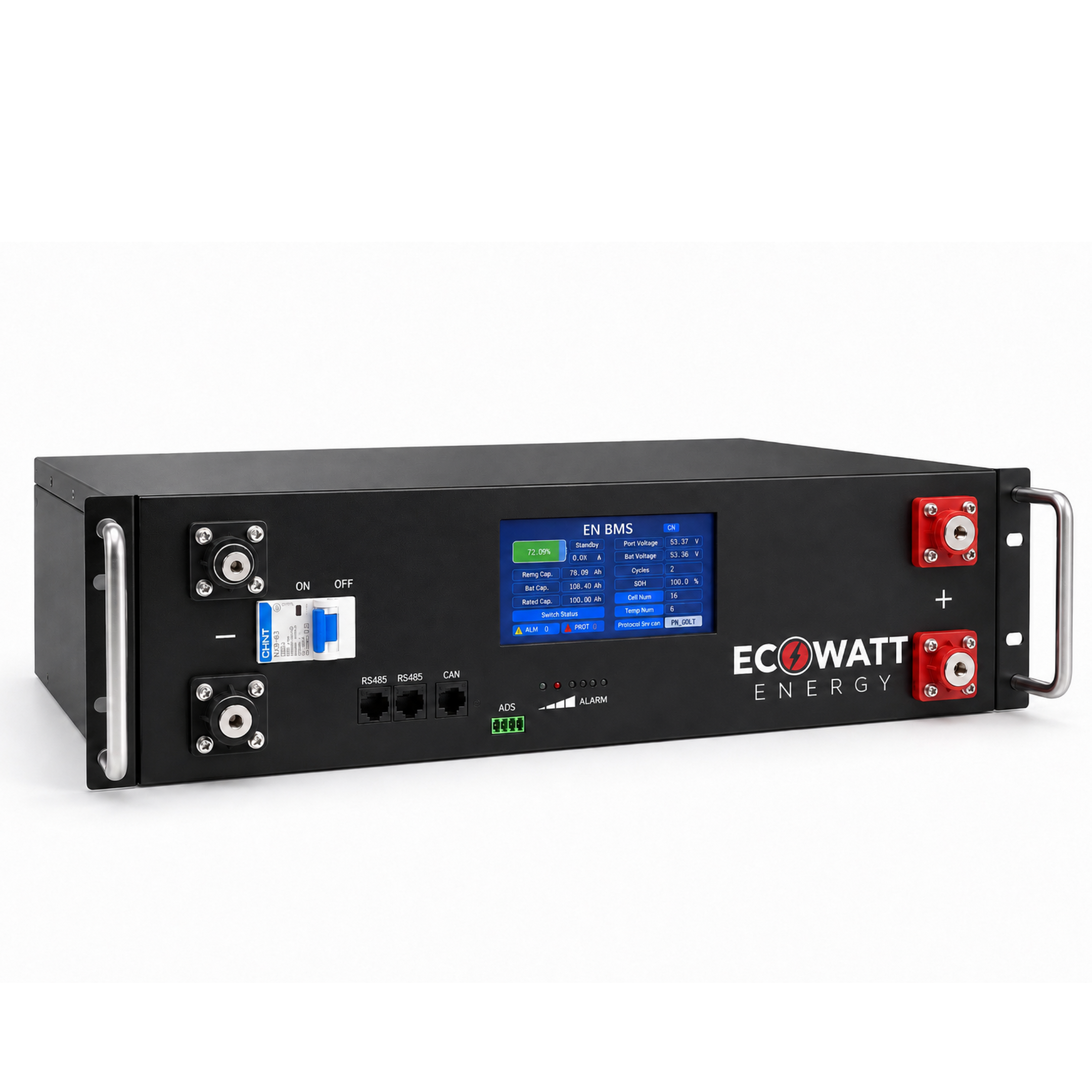

EcoStore Rack Mount 100Ah 48V LiFePO4 Battery - (EVE Cells & EN Bluetooth BMS) - COMING SOON
SKU: ESRM48V100
COMING SOON
Description
Why choose this model
The EcoStore Rack Mount 48V 100Ah is built for customers who need a reliable, compact, and scalable lithium battery solution for higher-voltage energy storage systems. With a 48V platform and 100Ah capacity, this model is ideal for solar storage, off-grid power systems, backup power, UPS applications, telecommunications, small commercial systems, and home energy storage setups.
Designed in a space-efficient 3RU rack mount format, it is perfect for customers who want a clean, modular battery system that can be expanded as their energy requirements grow. The rack mount design makes installation easier, keeps systems neat and professional, and allows multiple batteries to be connected together for larger capacity installations.
This model is a great fit for customers who require stable long-term power, high energy density, and dependable LiFePO4 performance in a compact rack-mounted package.
Built with premium components
Built using Grade A EVE LF100LA prismatic cells and a high-quality EN 100A BMS, the EcoStore Rack 48V 100Ah is designed for reliable daily operation, stable output performance, and long service life.
The EN BMS is recognised as a world-leading battery management system, providing advanced protection, monitoring, and control to help keep the battery operating safely and efficiently. The internal BMS provides protection against overcharge, over-discharge, over-current, short circuit, temperature extremes, and cell imbalance, helping support dependable long-term performance in demanding energy storage environments.
With premium EVE cells, a robust 100A BMS, and a compact 3RU rack mount design, this battery is a strong choice for customers wanting a professional-grade 48V lithium storage solution that is built for performance, reliability, and scalability.
Specifications
Type of Battery: Lithium-Iron Phosphate (LiFePO4)
Standard Voltage: 51.2V
Usable Capacity: 100Ah (5120Wh)
Cycle Life: 5000 @ 80% DoD
Charging Cut-Off Voltage: 57.6±0.2V
Discharge Cut-Off Voltage: 43.2V
Over-Charge Recovery Voltage: 54±0.2V or Discharge ≥ 1A
Over-Discharge Recovery Voltage: 48±0.2V or Charge ≥ 1A
Max. Continous Charging: Current 100A (1C)
Max. Continous Discharging: Current 100A (1C)
Battery Pack Assembly Method: 16S
Cell Type: EVE Grade A 3.2V 100Ah LFP Prismatic Cell (LF100LA)
BMS Brand: EN Smart 100A-S Programmable BMS
Charging Type: CC/CV
Charging Temperature: -0 ~ 55°C
Discharging Temperature: -15 ~ 55°C
Charging Temp Protection: ≥55℃
Discharging Temp Protection: ≥55℃
Maximum Battery Connectivity: 16 in Parallel
Input/Output Port Type: M8
Recommended Maximum Tightening Torque: 9.0 Nm

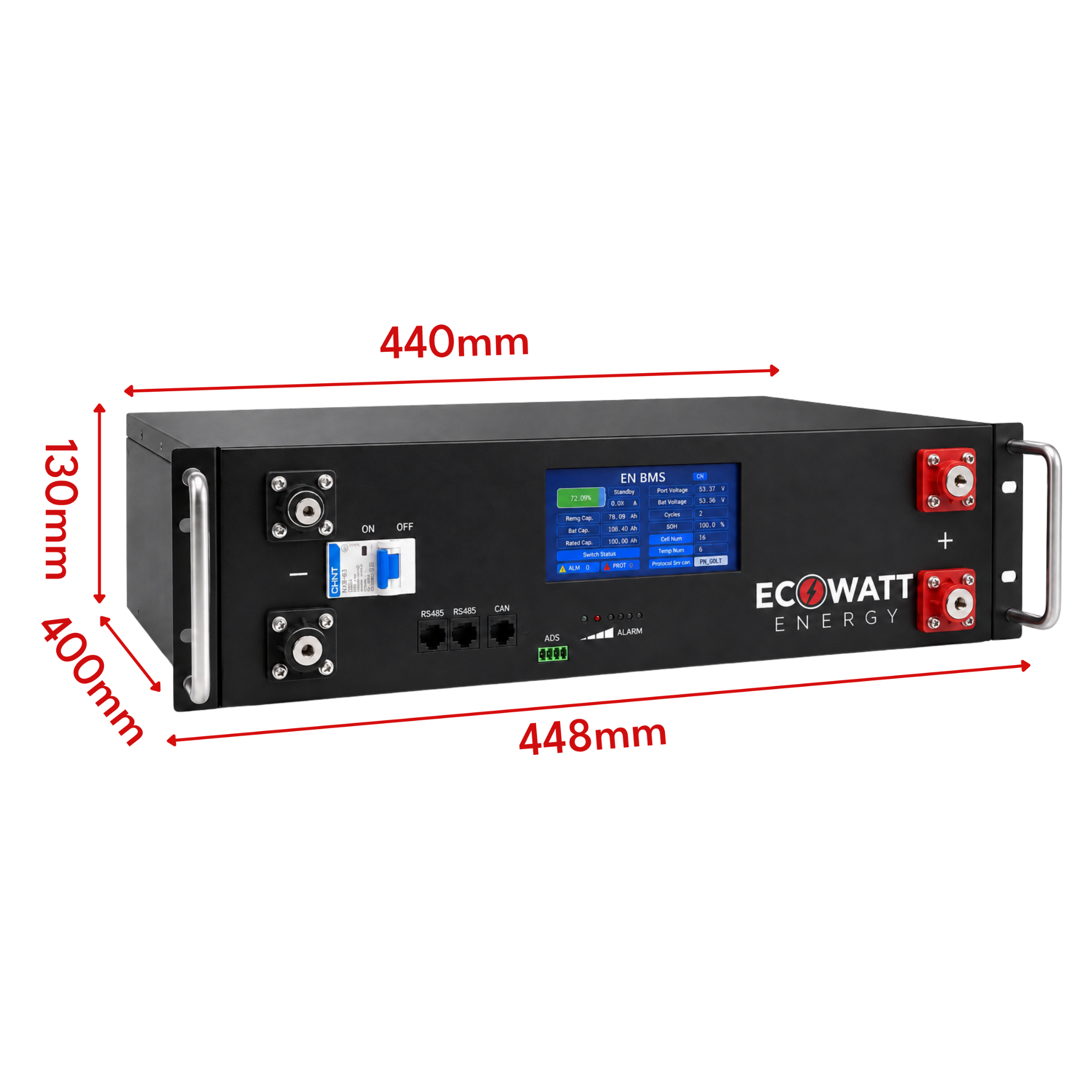

Dimensions: 440x400x130mm
Weight: 46KG
Case Material: ABS
Ip Rating: IP34
Certifications: IEC62619/UN38.3/ROHS
Warranty: 5 Year Full Replacement Warranty
Bluetooth BMS: Yes
What's in the box
1x ESRM48V100
1x Warranty Card
1x Charging Information Card
1x Bluetooth App Instructions
1x Production Information Card
2x M8*12 Terminal Bolts
2x M8*16 Terminal Bolts
Mounting Bolts
FAQs
What is an A-Grade Cell?
An A-Grade Cell refers to a battery cell that meets the highest standards of quality and performance. These cells are rigorously tested and graded based on their capacity, voltage, and overall reliability. At EcoWatt, we meticulously select only the highest quality A-Grade Cells to ensure superior cycle life, consistent performance, longer lifespan, and greater safety compared to lower-grade cells, making them the top choice for premium battery products.
How do I use the Bluetooth Monitoring Feature?
To use the Bluetooth Monitoring Feature, first download the EcoWatt Energy Connect app from the Apple App Store or Google Play Store. Then, open the app, connect to your battery, and start monitoring.
My Charger says the battery is fully charged, but the app is not showing 100% charge, why?
Sometimes, the State of Charge (SOC) display on the app/shunt may not be fully accurate until the battery has gone through a few full charge and discharge cycles.
What are your Recommended Charger Settings?
- Coming Soon
Do you offer a Satisfaction Guarantee?
Not 100% satisfied? No stress! Return your undamaged EcoWatt products for ANY reason, within 30 days, and you'll receive a refund, no questions asked!
What are your delivery options?
Enjoy reliable, convenient & FREE shipping on all orders Australia-wide. We offer a fast 24-hour dispatch turnaround time, so you can get your order in no time!
Please Note: Due to postage restrictions with Lithium/LiFePO4 batteries, your EcoWatt Product will be shipped in its original UN38.3 certified packaging from our factory.
CANBUS/RS485 Compatibility
Place your order before 10:00am for same day dispatch
Not entirely satisfied with your purchase? You can return it within 30 days
Let customers speak for us
Had it installed3 weeks ago and I’ve been impressed with it so far! Nice and neat. Looks great
Excellent delivery time, arrived way sooner than I expected. Couldn't fault the packaging. Bonus is the sturdy pallet I get to use in the shed, battery has given me a significant increase in capacity and allowed me several mounting options freeing up space in my canopy. The connection is simple and the Anderson plugs are a useful addition. Very pleased with the product and service.
These little power bank units are great. I have 2 of these now and will be getting my 3rd. one soon. 1 for me, one for my wife and one to have at work.
So good with two 180w solar panels with blue tooth monitoring
Fantastic service from the team, delivered to site seamless, and integrated perfectly with the victron setup. 1 week into the trip bring on the next 12.
Two of these batteries installed. Integrated with Victron solar controller BMV, and Cerbo GX, no problems. Excellent tech support and quick responses from the Ecowatt team. Only thing I would say is that the batteries come as is, with no instructions. I bought them right when they were released, and I have noticed that the team has subsequently improved the information about the batteries on the website, so that goes some way to addressing this minor gripe. To maximise battery longevity, we also customised (lowered) the charging and float voltages from what the website recommends. Overall, at this early stage, I would recommend these batteries for their performance, warranty and the excellent support from the Ecowatt team.
Absolute perfect fit and upgrade to my canopy. Incredibly simple install. Looks and works great. Thanks you. 2 day delivery was awesome.
Very good battery and design slim the best
I baught 2 of these to replace my 200ah battery. They have been great, they power the multiplus 2 to full surge capacity with no issues. I have cut the handles off and squeezed them into a 700mm battery box.
Was easy to fit into system.
The easy of ordering and the quality of the battery is second to none. So far it has been a great addition to my vehicle setup.
We recently installed the Pro 230amp slimline to our new 300 build.
Very easy transaction with fast delivery, fit absolutely perfectly under our Razed products false floor setup, running a 30ltr Engel it barley drops 2% over night so heaps of power which we've always struggled with in our previous underbonnet setups.
Good service and so far working well
Very happy with our purchase. Quality seems to be very good both in construction and electronics. Used it for a 2 week off grid touring holiday without an issue.
I still haven’t fully installed it yet although the battery came fast and well packaged and it has charged as it should, Bluetooth works and and is a great deal
Long-Lasting Cycle Life
With a verified cycle life exceeding 5,000 cycles, the EcoStore Rack Mount 48V 100 is built to provide reliable power year after year. Designed for durability and consistency, it eliminates the concern of frequent replacements, giving you confidence and peace of mind for all your energy needs.
EVE A-Grade Cells
Powered by brand-new EVE LF100LA A-Grade cells, the EcoStore Rack Mount 48V 100 is engineered for maximum reliability and long-term durability, making it the perfect choice for both everyday use and high-demand applications.
Every battery is carefully batch-tracked and precision-matched, with cell voltage variance maintained within ±0.001V. This uncompromising attention to detail ensures consistent performance, exceptional efficiency, and peace of mind with every cycle.
Ultra-Compact Design
Maximise your energy storage with the ESRM48V100 Rack Mount Battery’s compact, rack-ready design. Engineered for seamless integration into standard rack systems, it delivers dependable 48V 100Ah performance while optimising valuable installation space. Ideal for solar storage, backup power, and off-grid applications, the ESRM48V100 provides reliable power where efficiency and scalability matter most.
Bluetooth Monitoring
Stay in control with Bluetooth monitoring via the EcoWatt Energy Connect app. Track your battery’s charge levels, voltage, and overall performance in real time. Right from your smartphone, anytime.
Advanced EN BMS Safety Features
Rest easy with the EcoStore Rack Mount 48V 100’s advanced EN BMS protection. Engineered to safeguard against overcharging, overheating, short circuits, and more, our intelligent BMS ensures safe, reliable performance in every condition.
CANBUS Inverter Connectivity
Built for smarter energy system integration, the ESRM48V100 supports CANBUS communication with a wide range of compatible inverter brands including Victron, Growatt, Deye, Sunsynk, GoodWe, Solis, Sofar, LuxPower, Sol-Ark and more.
This allows the battery and inverter to communicate key data such as state of charge, voltage, current, temperature and protection status, helping deliver more accurate monitoring, safer charging and smoother system performance.
5 Years Full Replacement Warranty
Backed by a true 5-year full replacement warranty, the EcoStore Rack Mount 48V 100 is protected by an Australian warranty that puts you first. Unlike pro-rata warranties that leave you paying more as time goes on, ours guarantees a brand-new replacement if anything goes wrong. Simple, fair, and hassle-free.
