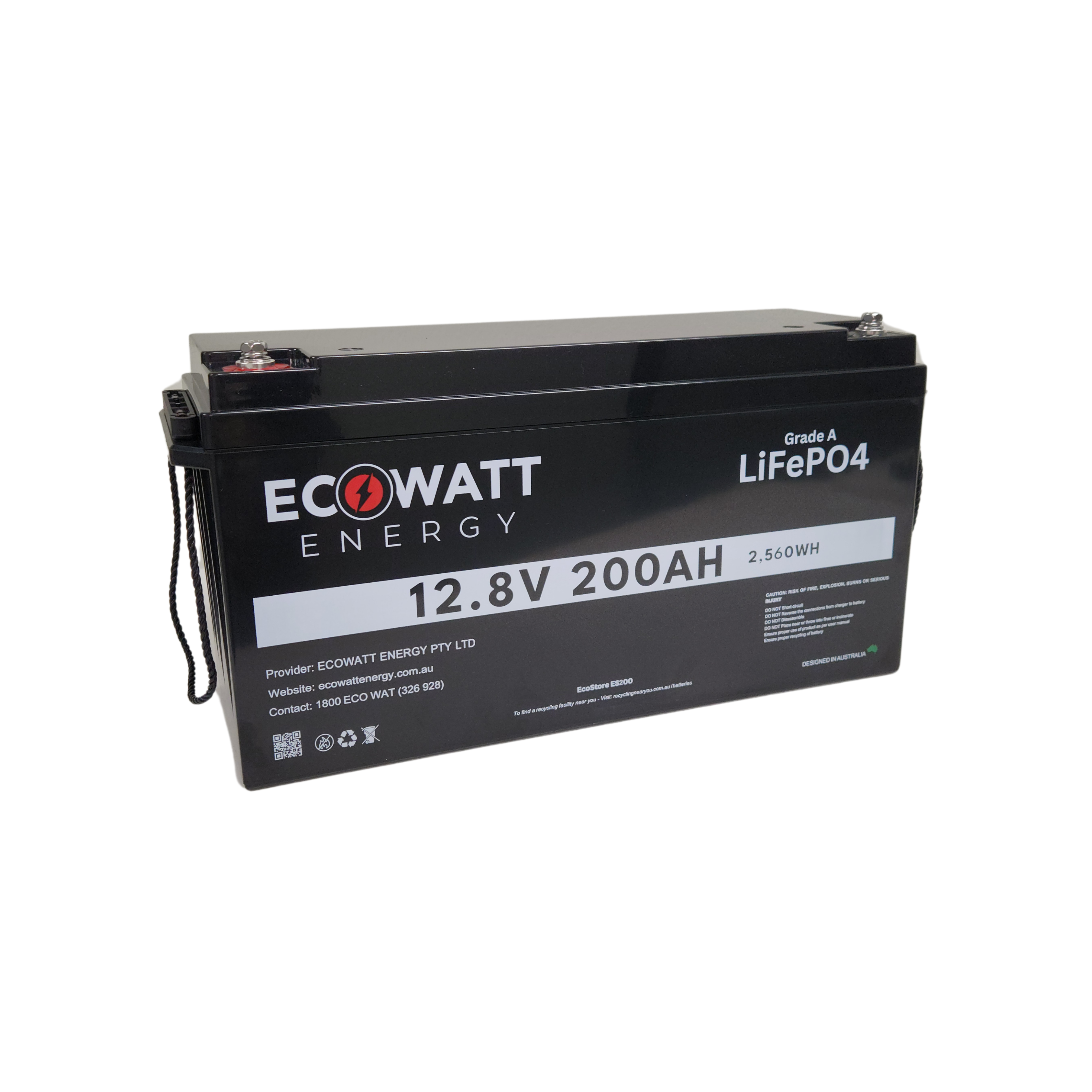

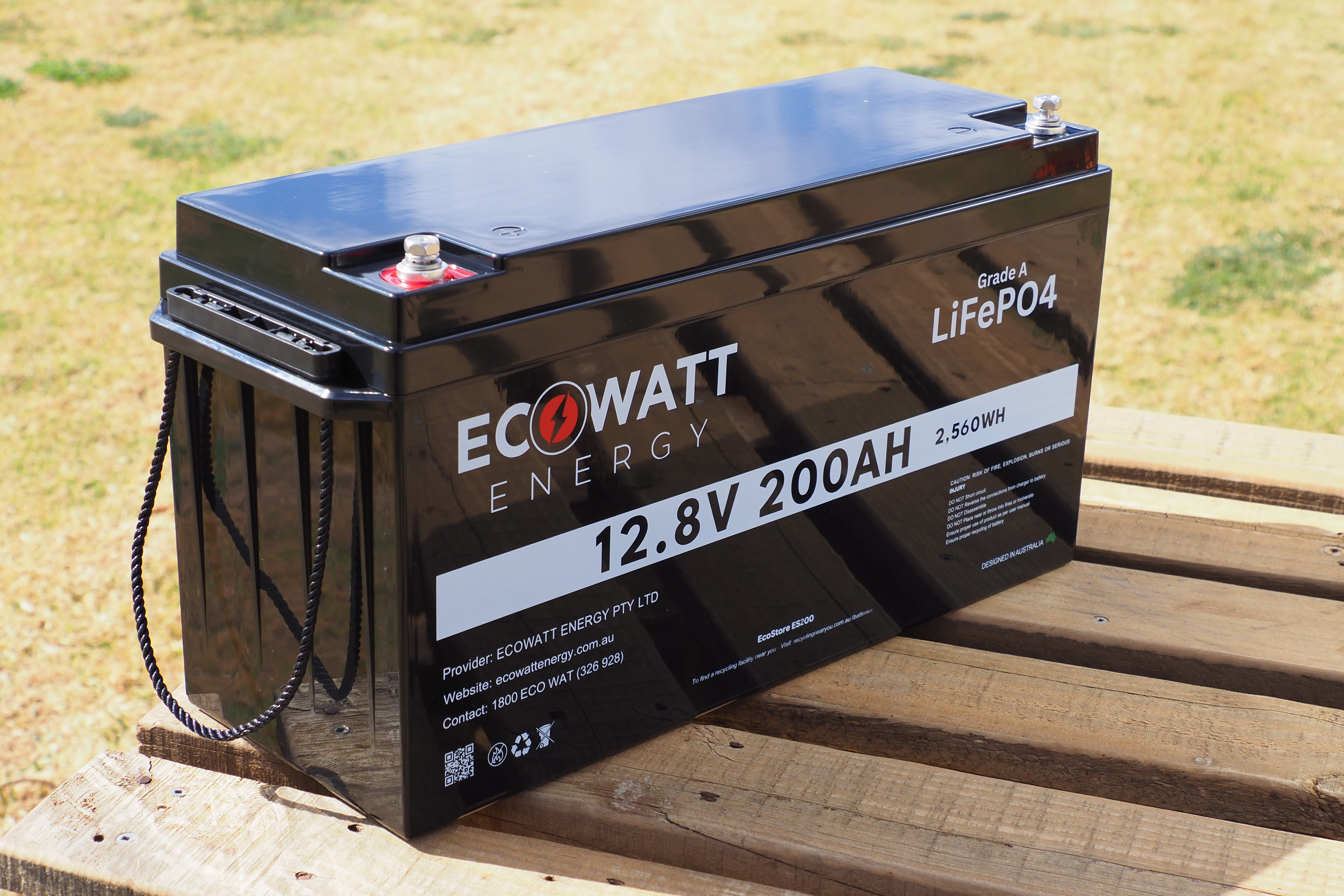

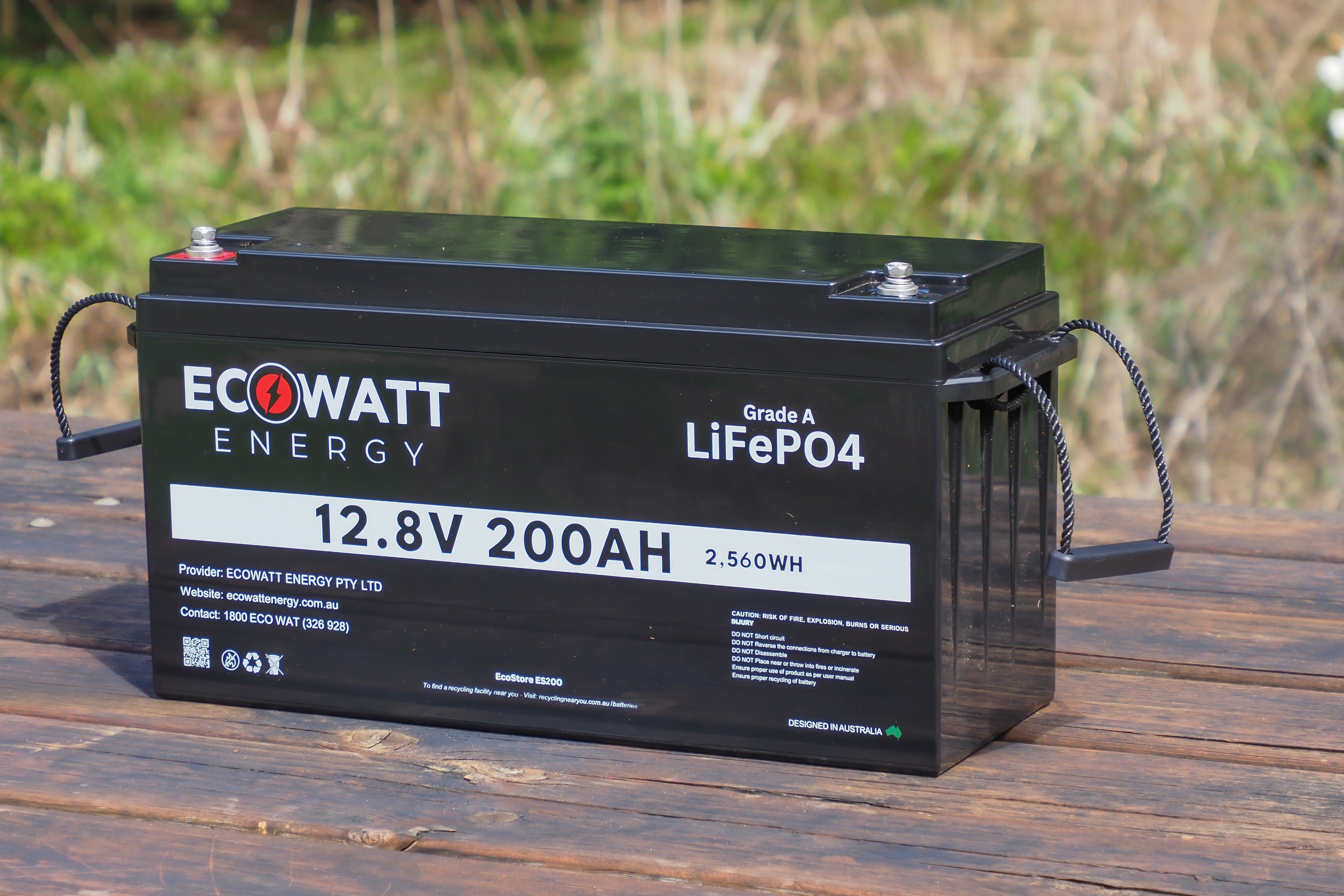

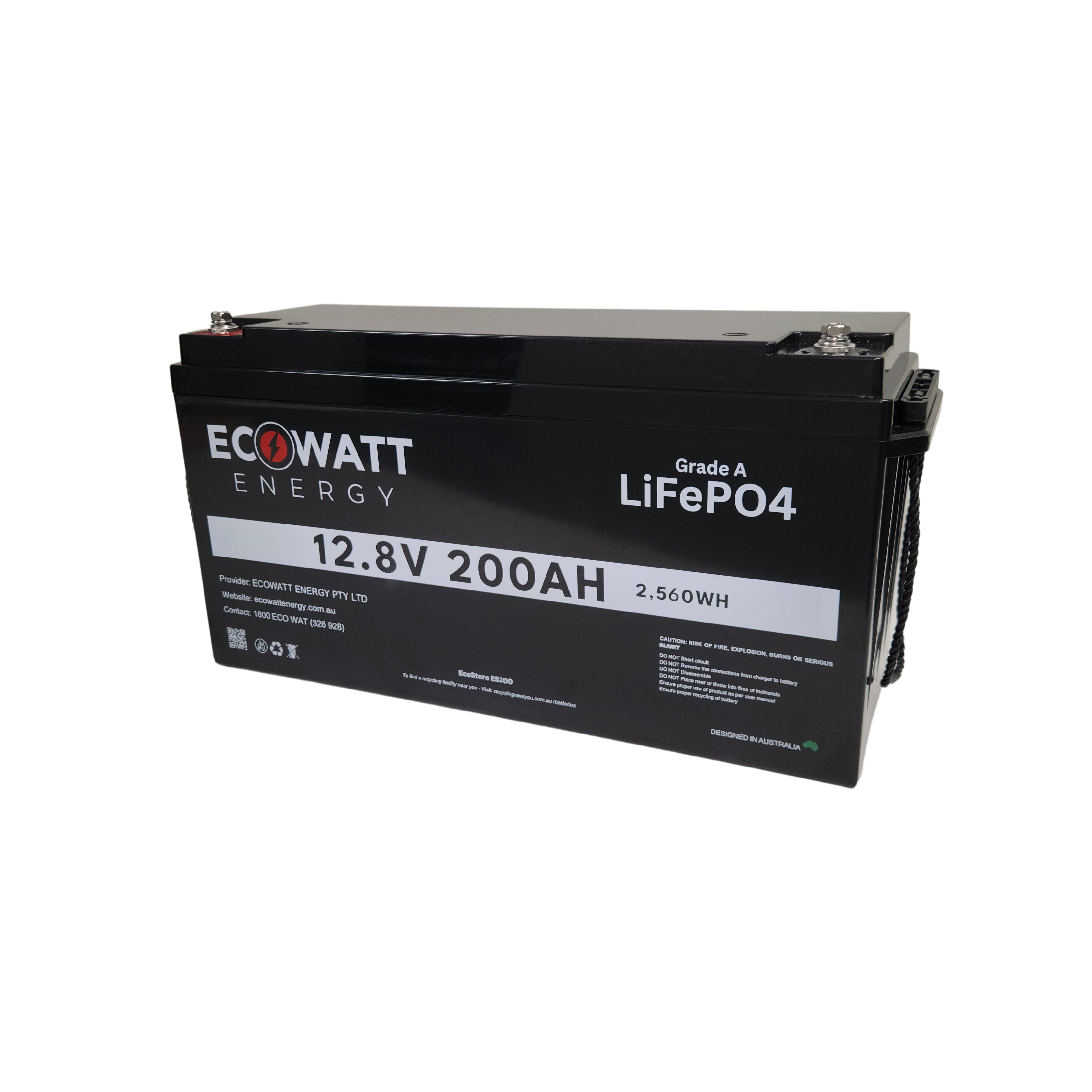

EcoStore 200Ah 12.8V LiFePO4 Battery - (EVE Cells) & (Bluetooth BMS - JBD)
SKU: ES200
Description

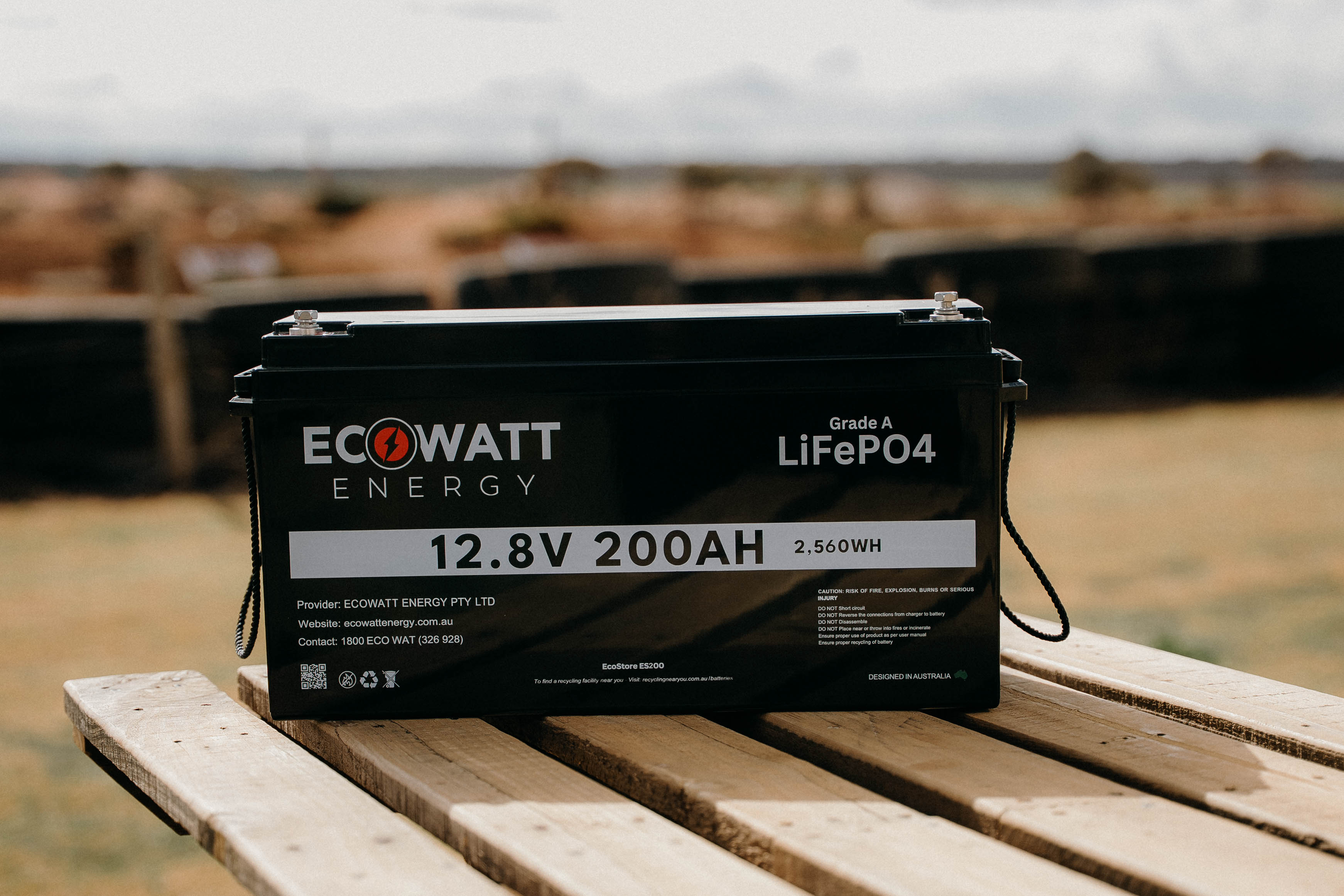

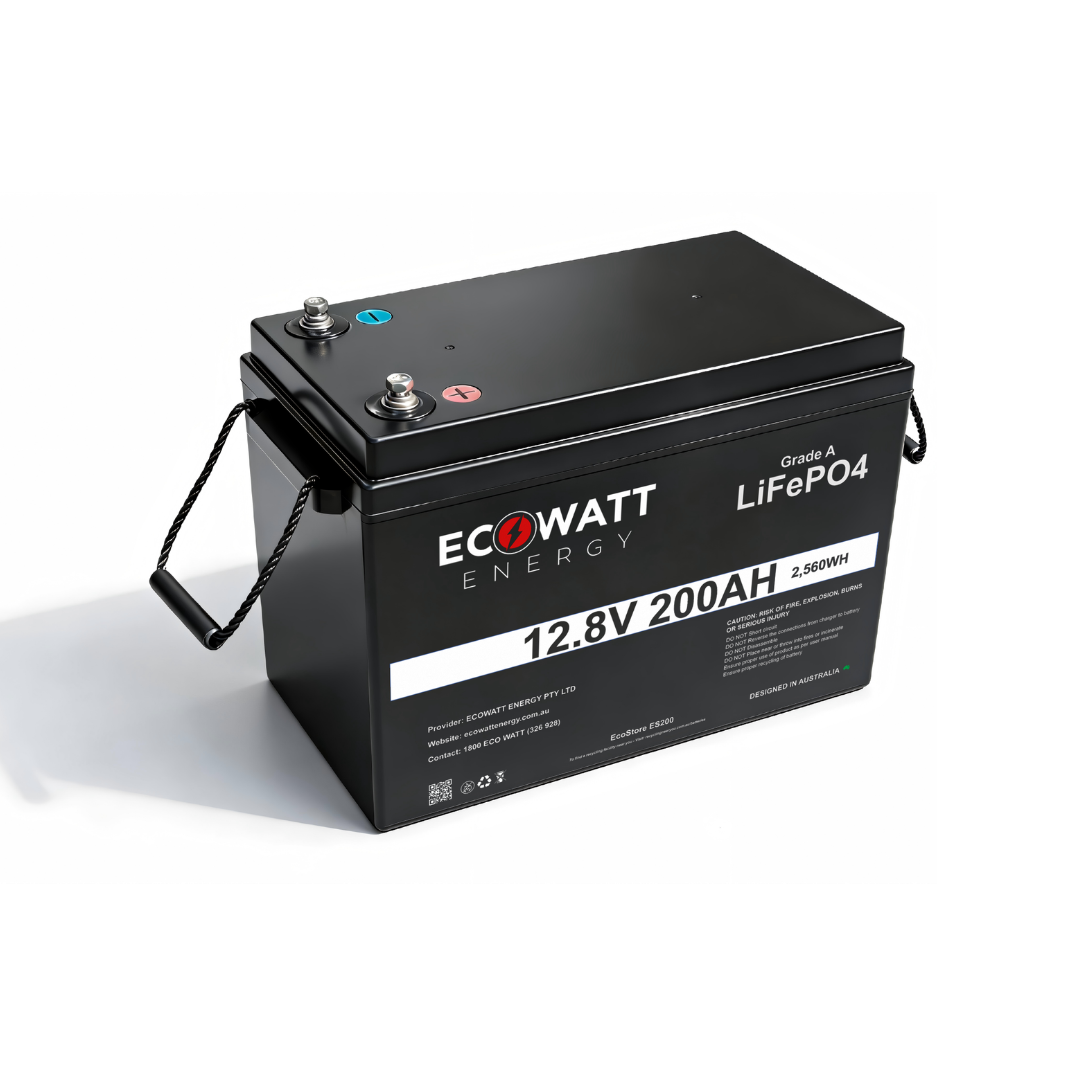

Introducing the EcoStore 200Ah
Developed from decades of innovation and tested in real-world conditions, the EcoStore 200 isn't just an upgrade—it's a significant advancement in lithium battery technology. Compared to traditional Li-ion batteries, the ES200 has enhanced energy density, improved safety, faster charging times, a longer lifespan, and its compact design ensures easy integration into a variety of systems. These features make the EcoStore 200 the top choice for critical applications where performance and dependability are paramount.
Power with peace of mind
Our EcoStore 200 features Grade A EVE prismatic cell technology and a robust 200Ah Hardware-Controlled Battery Management System. This setup enhances safety and provides comprehensive protection against common battery issues such as overcharging, overdischarging, overheating, or short circuits. With this battery, you can expect stellar performance and durability, even in tough conditions.
Specifications
Type of Battery: Lithium-Iron Phosphate (LiFePO4)
Standard Voltage: 12.8V
Usable Capacity: 200Ah (2560Wh)
Cycle Life: 5000 @ 80% DoD
Charging Cut-Off Voltage: 14.8±0.2V
Discharge Cut-Off Voltage: 9.0±0.2V
Over-Charge Recovery Voltage: 14±0.2V or Discharge ≥ 2A
Over-Discharge Recovery Voltage: 10.8±0.2V or Charge ≥ 2A
Max. Continous Charging: Current 200A (1C)
Max. Continous Discharging: Current 200A (1C)
Peak Discharge Rate (1.5s): 760±120A (3C+)
Battery Pack Assembly Method: 4S2P
Cell Type: EVE Grade A 3.2V 100Ah LFP Prismatic Cell
BMS Brand: JBD Smart 200A-S Programmable BMS
Charging Type: CC/CV
Charging Temperature: -10 ~ 65°C
Discharging Temperature: -20 ~ 75°C
Charging Temp Protection: ≥65±5℃
Discharging Temp Protection: ≥75±5℃
Maximum Battery Connectivity: Unlimited in Parallel/Four in Series
Input/Output Port Type: M8

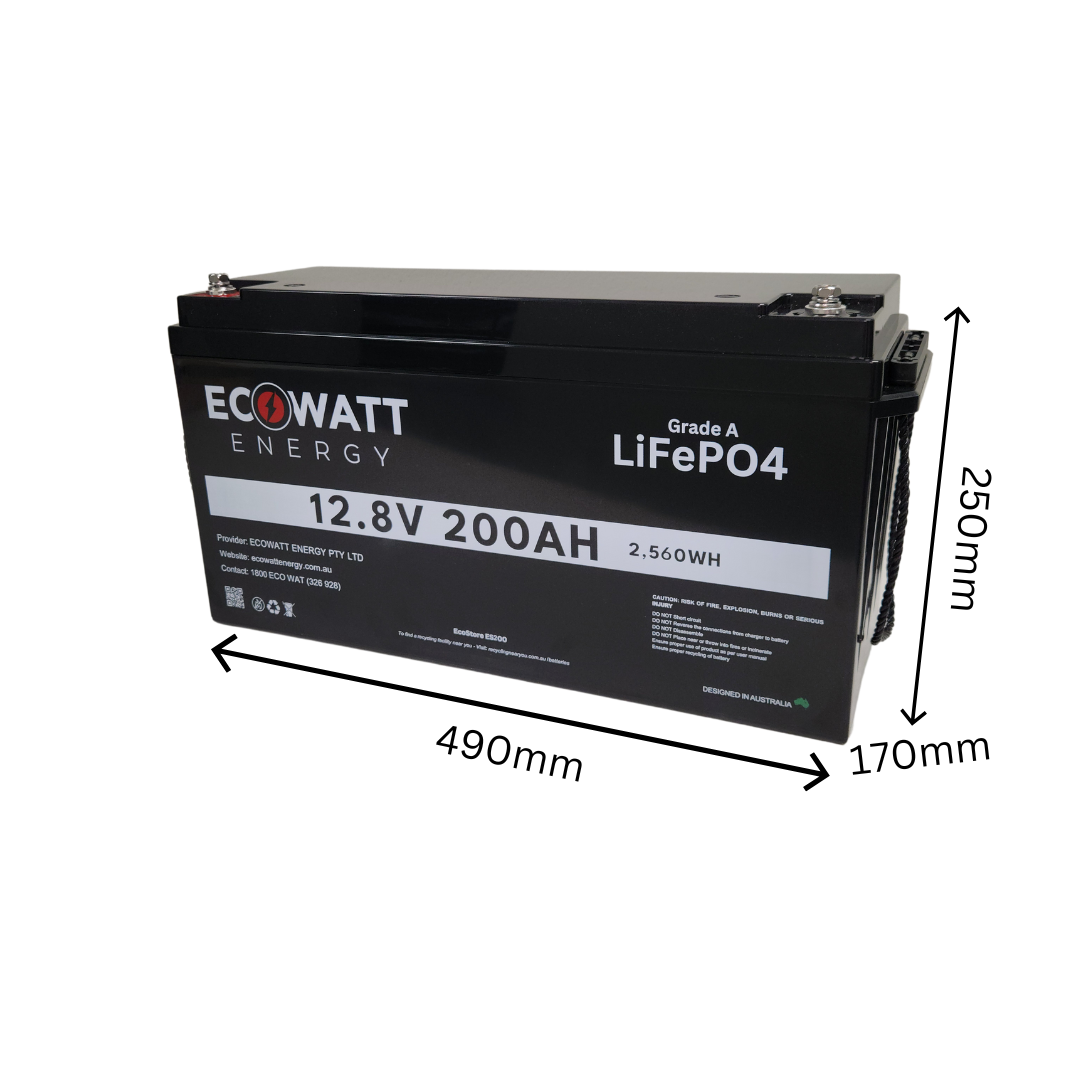

Dimensions: 490x170x250mm
Weight: 19.5KG
Case Material: ABS
Ip Rating: IP67
Certifications: IEC62619/UL1642A/UN38.3/ROHS
Warranty: 5 Year Full Replacement Warranty
Bluetooth BMS: Yes, via EcoWatt Energy Connect app
What's in the box
1x EcoStore 200
1x Warranty Card
1x Charging Information Card
1x Bluetooth App Instructions
FAQs
What is an A-Grade Cell?
An A-Grade Cell refers to a battery cell that meets the highest standards of quality and performance. These cells are rigorously tested and graded based on their capacity, voltage, and overall reliability. At EcoWatt, we meticulously select only the highest quality A-Grade Cells to ensure superior cycle life, consistent performance, longer lifespan, and greater safety compared to lower-grade cells, making them the top choice for premium battery products.

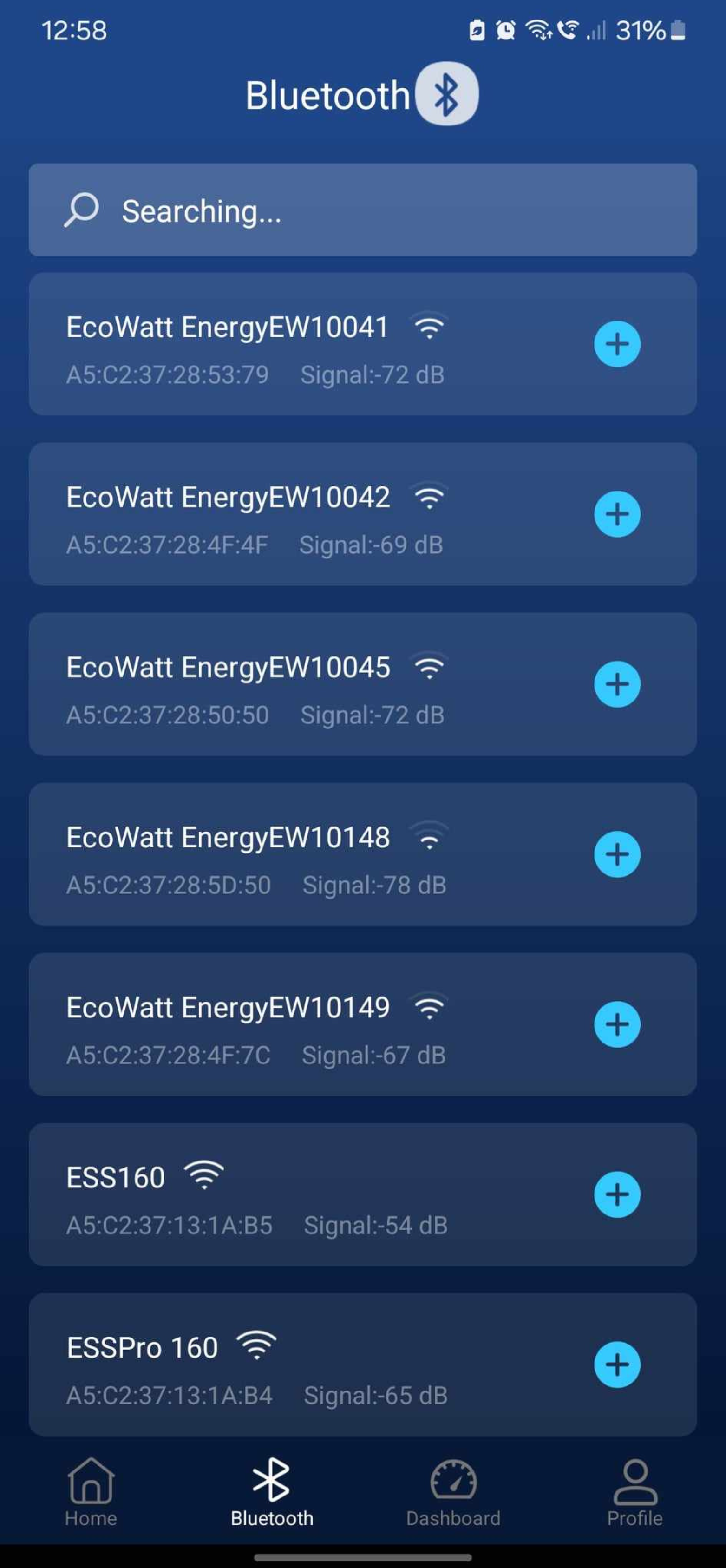

How do I use the Bluetooth Monitoring Feature?
To use the Bluetooth Monitoring Feature, first download the EcoWatt Energy Connect app from the Apple App Store or Google Play Store. Then, open the app, connect to your battery, and start monitoring.
My Charger says the battery is fully charged, but the app is not showing 100% charge, why?
Sometimes, the State of Charge (SOC) display on the app may not be fully accurate until the battery has gone through a few full charge and discharge cycles. The BMS needs time to 'learn' the battery’s parameters and adjust accordingly before the Bluetooth monitoring provides precise readings.
What are your Recommended Charger/Shunt Settings?
- Charged voltage: Around 13.5V, but you can double-check this once the battery is fully charged.
- Bulk charging voltage: Between 14.4V to 14.6V
- Absorption voltage: Between 14.4V to 14.6V
- Float voltage: Around 13.5V
- Storage voltage: Similar to the charged voltage; 13.5V
- Discharge floor: It can be set above 20%. This setting is more about your personal preference for the charger than the battery. The higher this percentage, the better. We don't recommend going below 20%.
- Tail current: Anywhere between 2-4% is fine. Once the charging current drops below this range, the battery is nearly fully charged.
- Peukert exponent: This is mostly relevant for lead-acid batteries. For LiFePO4, setting it to 1.05 is standard
- Charge efficiency factor: Set this to 99%
- Current threshold: 0.1A
- Charge detection and Time to go averaging period: These can remain unchanged
- State of charge (SOC) synchronization: We recommend synchronizing the SOC to 100% once you've fully charged the battery
Can I use the EcoStore 200 under the bonnet?
No, it is not recommended to use the EcoStore 200 under the bonnet. We advise against using our LiFePO4 batteries for under bonnet applications due to their lower thermal tolerance compared to other battery types, such as lead-acid or AGM. The engine compartment can reach high temperatures, particularly in demanding conditions or during extended use, which can degrade the battery's performance, lifespan, and safety.
Do you offer a Satisfaction Guarantee?
Not 100% satisfied? No stress! Return your undamaged EcoWatt products for ANY reason, within 30 days, and you'll receive a refund, no questions asked!
What are your delivery options?
Enjoy reliable, convenient & FREE shipping on all orders Australia-wide. We offer a fast 24-hour dispatch turnaround time, so you can get your order in no time!
Please Note: Due to postage restrictions with Lithium/LiFePO4 batteries, your EcoWatt Product will be shipped in its original UN38.3 certified packaging from our factory.
Accessories Compatibility/Recommendations
1. AC-DC Chargers / Inverter-Chargers
These devices allow your system to draw from AC mains (shore power, generator, grid) and convert to DC to charge your batteries
Recommended Models:
Victron MultiPlus / MultiPlus II inverter/charger series
Victron Blue Smart series
support custom charging profiles for lithium (LiFePO4) and allow easy monitoring and updates via the VictronConnect app.
2. DC-DC Converters / Chargers
DC-DC chargers are used mainly when you want to safely charge your battery bank from another DC source (for instance, from an alternator).
Recommended Models:
Victron Orion‑Tr Smart Series DC‑DC Charger
Victron Orion‑XS Series DC‑DC Charger
These are excellent if you have a “start battery + house battery” separation
3. MPPT (Maximum Power Point Tracking) Solar Charge Controllers
MPPT controllers extract the maximum power from solar PV panels, converting varying panel voltages into optimal charging currents for the battery.
Recommended Models:
Victron SmartSolar MPPT Series - Bluetooth Compatible
Victron BlueSolar MPPT Series - Need Separate Bluetooth Dongle.
4. Shunt / Battery Monitoring
A shunt-based battery monitor can be used to measure state-of-charge, energy used, and input/output flows.
Recommended Model:
Victron SmartShunt - small, accurate, Bluetooth-enabled
Not on this list?
Any lithium-compatible accessory from brands like Enerdrive, Redarc, Renogy, Itechworld, or Kickass Products will also work just fine as well.
Place your order before 10:00am for same day dispatch
Not entirely satisfied with your purchase? You can return it within 30 days
Let customers speak for us
The 230ah Slimline Pro is perfect size for my requirements - the slimline battery sits under my drawers as though it was built for it.
The Bluetooth app also works well - providing me real time info on state of charge and discharge.
Connected solar today, and yet another positive experience.
A fantastic battery, that fits well under the false floor of my Toyota landcruiser 300.
Great quality, Bluetooth function works great
Recently purchased but a quality product so far. It really has changed camping off grid for me. I just returned from a week camping and when everyone else is starting cars and running generators to keep their gear running she has a load of storage and is easily topped up with solar. The BMS and app are awesome, super easy to see what's going on. Happily recommend.
Looks good and performs great to how need it to.Highlyrecomended
Needed a battery for our new caravan and this was the perfect solution. Great transaction and quality product.
Quality product, fast delivery, highly recommend.
Great battery, good quality and fit perfect!
What an amazing battery. We originally purchased one for our 4wd for extended weekend camping. It performed so well, we purchased another two for our camper. We have now just returned from a 2 week adventure and for the first times in years we didnt have low battery anxiety. I highly recomend these batteries for performance and ease of monitoring via the blue tooth app.
This is the second 230ah slim battery I’ve bought from Ecostore, great battery fits under the floor of a Y62 nicely. Definitely be using more of these.

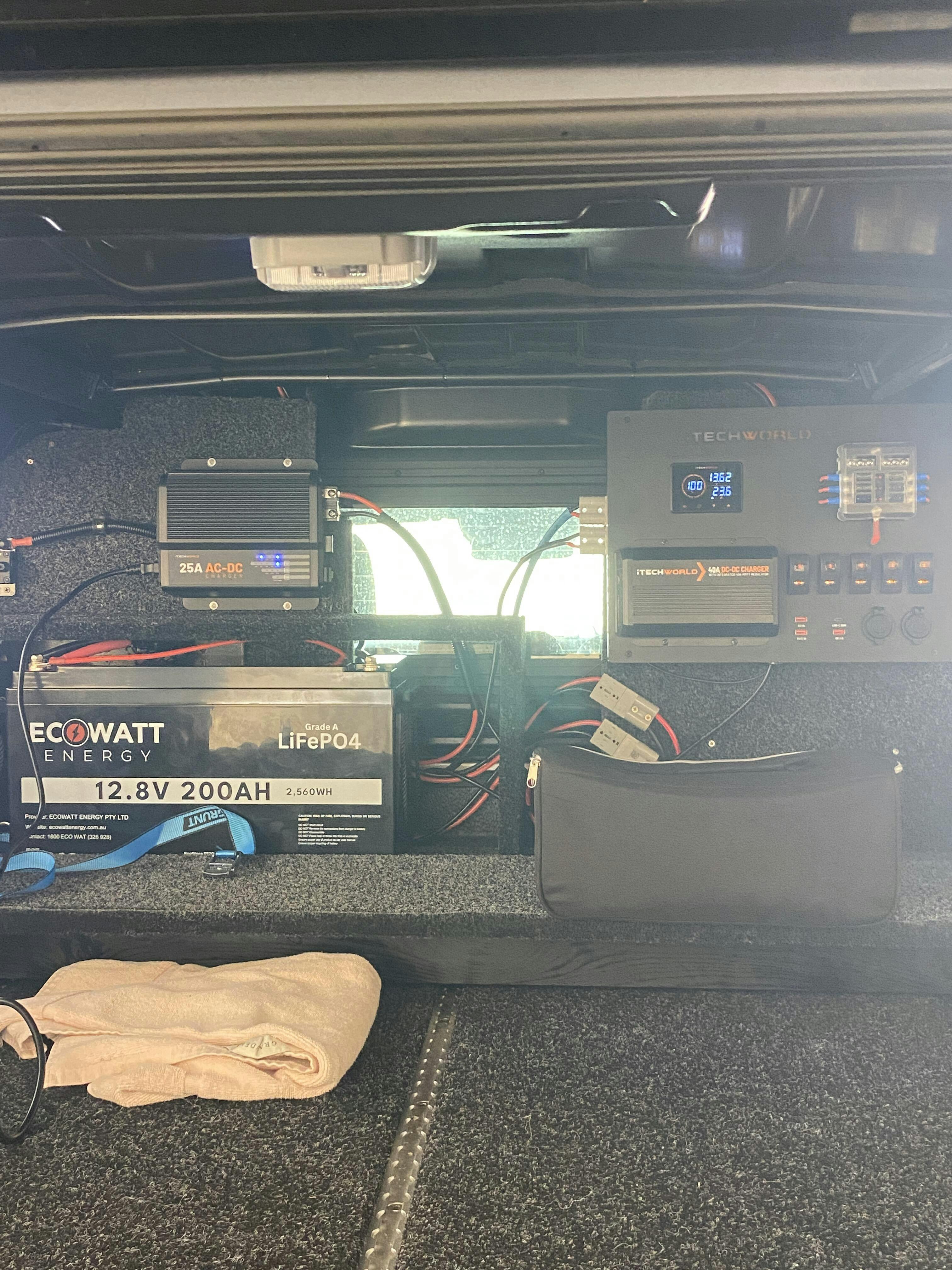

Great product ..Have only just installed in my Ute so haven't got any long term testing but so far everything looks and works as it should. Well built and solid, no rattles or anything loose like some batteries ive seen..Bluetooth comes in handy with the app to make sure everything is charging and working right with my set up.
Good product and super fast delivery
Great battery build quality, high function BMS, included all fasteners
In today’s market you don’t always find a product that supports it reputation.
Ecowatt is a product that fully supports the great reviews and professional recommendations.

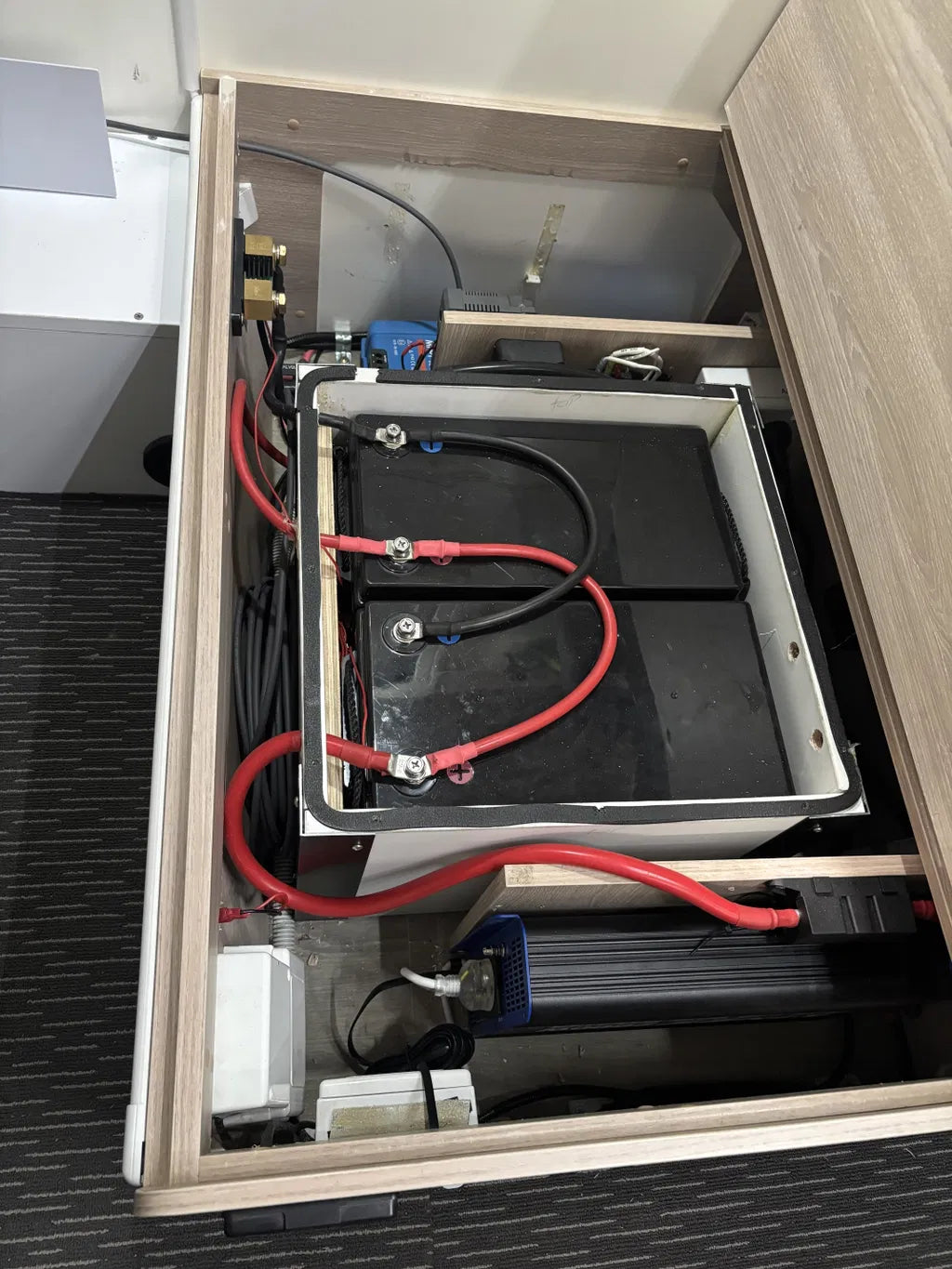

I replaced our batteries with two 200Ah batteries and set out on a trip around Flinders Ranges and Lake Eyre, they never missed a beat.
Will be purchasing a third to give me 600Ah when we get back.

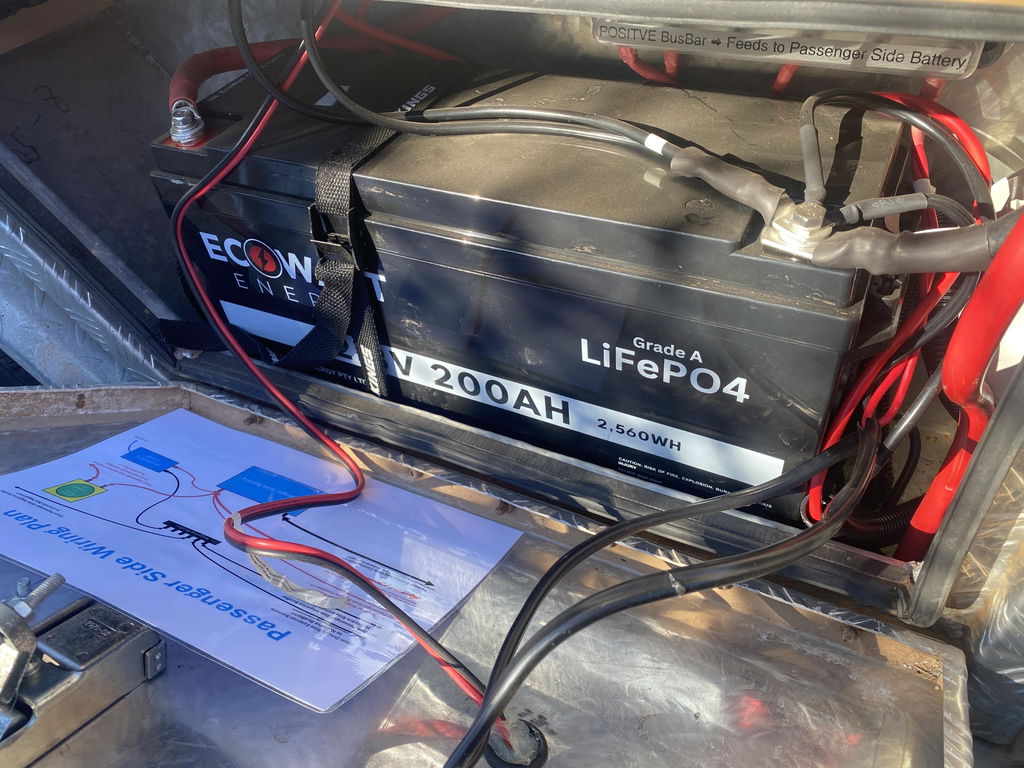

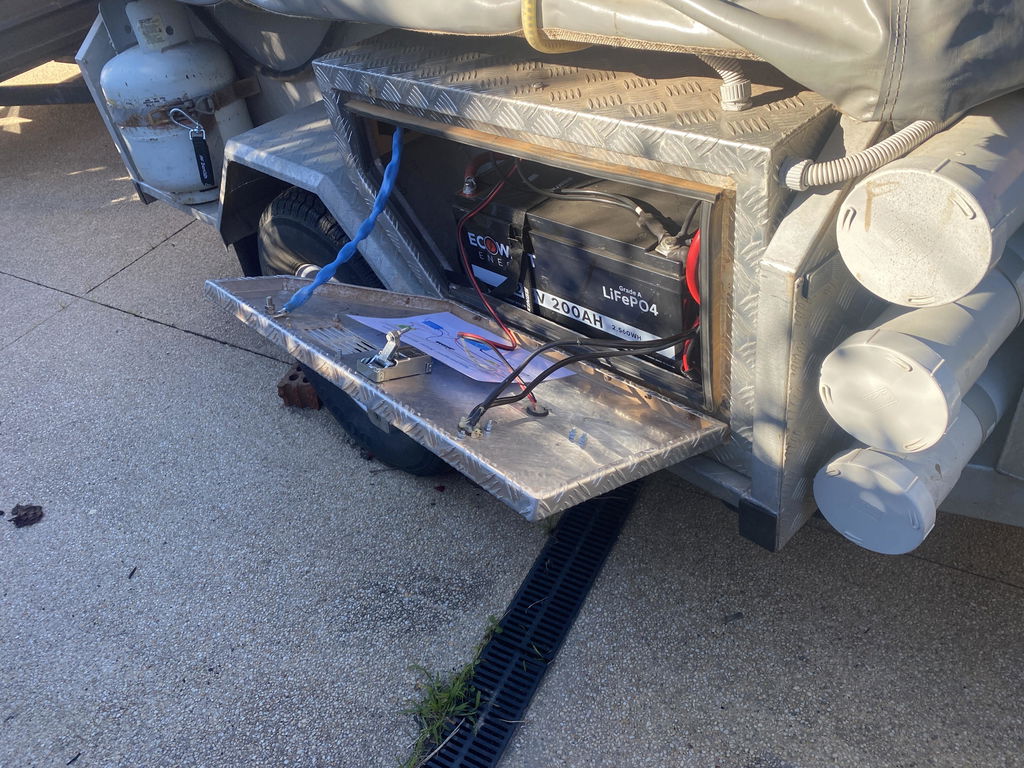

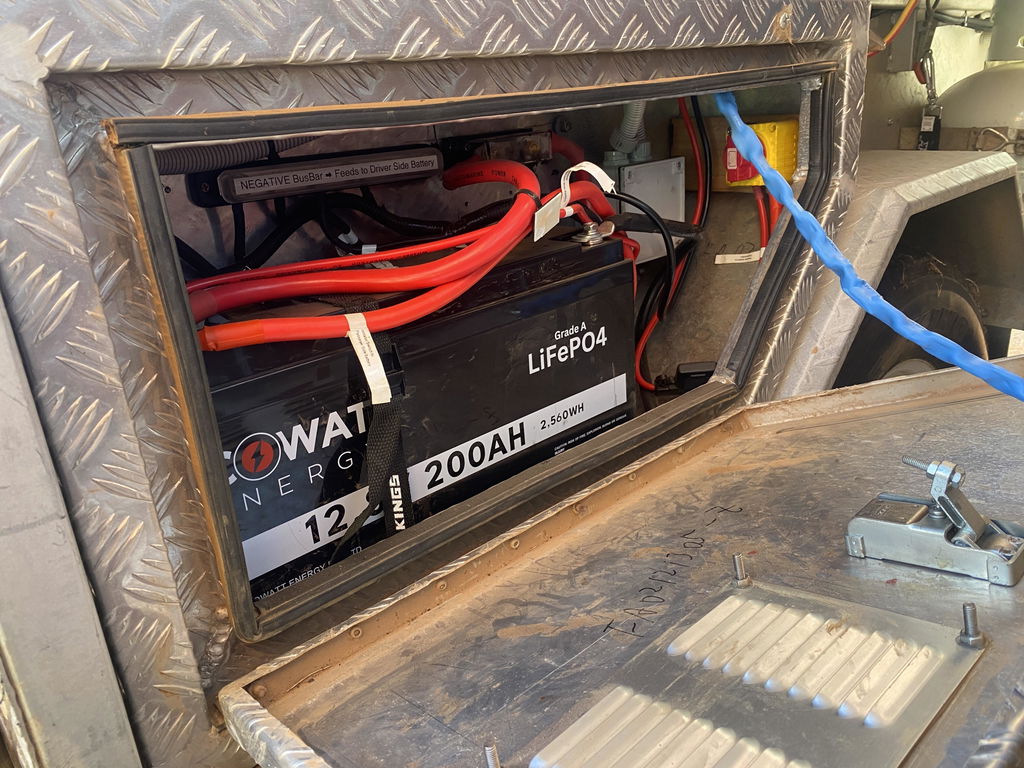

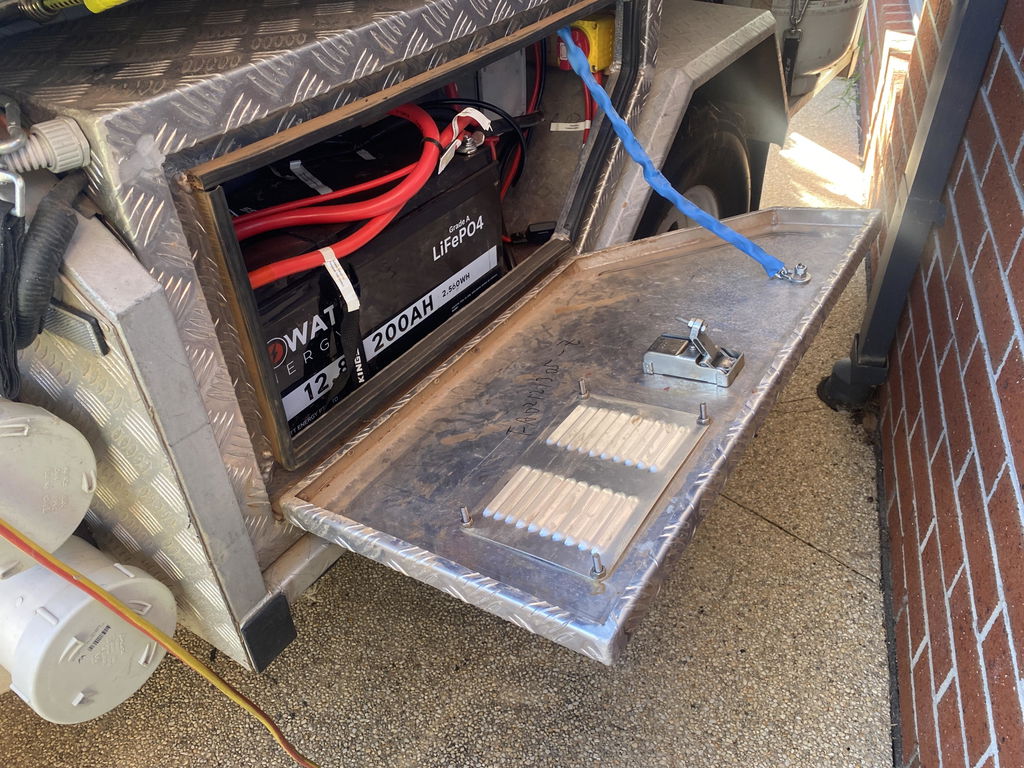

Put 2 x 200amp batteries outside the caravan on the chassis. Working 100% as hoped. Will buy again when the camper battery needs replacing. Very happy with the product and service! 6 stars!
Fast delivery. Well packed. Charging well up to 105 ah off my dc dc charger. Great app.
Long-Lasting Cycle Life
With a verified cycle life exceeding 5,000 cycles, the EcoStore 200 is built to provide reliable power year after year. Designed for durability and consistency, it eliminates the concern of frequent replacements, giving you confidence and peace of mind for all your energy needs.

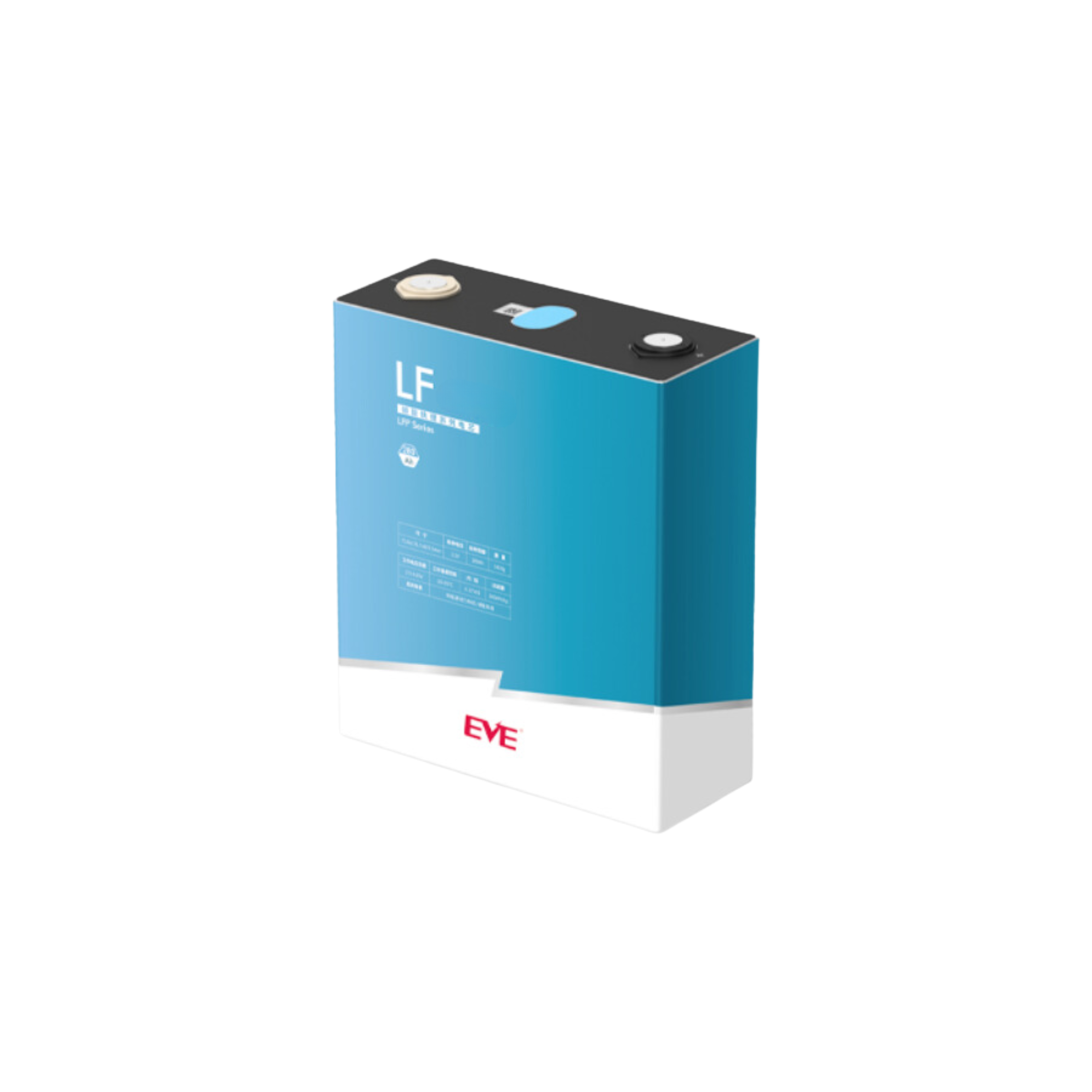

EVE A-Grade Cells
Powered by brand-new EVE LF100LA A-Grade cells, the EcoStore 200 is engineered for maximum reliability and long-term durability, making it the perfect choice for both everyday use and high-demand applications.
Every battery is carefully batch-tracked and precision-matched, with cell voltage variance maintained within ±0.001V. This uncompromising attention to detail ensures consistent performance, exceptional efficiency, and peace of mind with every cycle.
Ultra-Compact Design
Maximise your storage space with the EcoStore 200’s ultra-compact design. Engineered for tight installations, it delivers exceptional power without taking up unnecessary room, making it the perfect solution for RVs, boats, and off-grid systems where every inch matters.

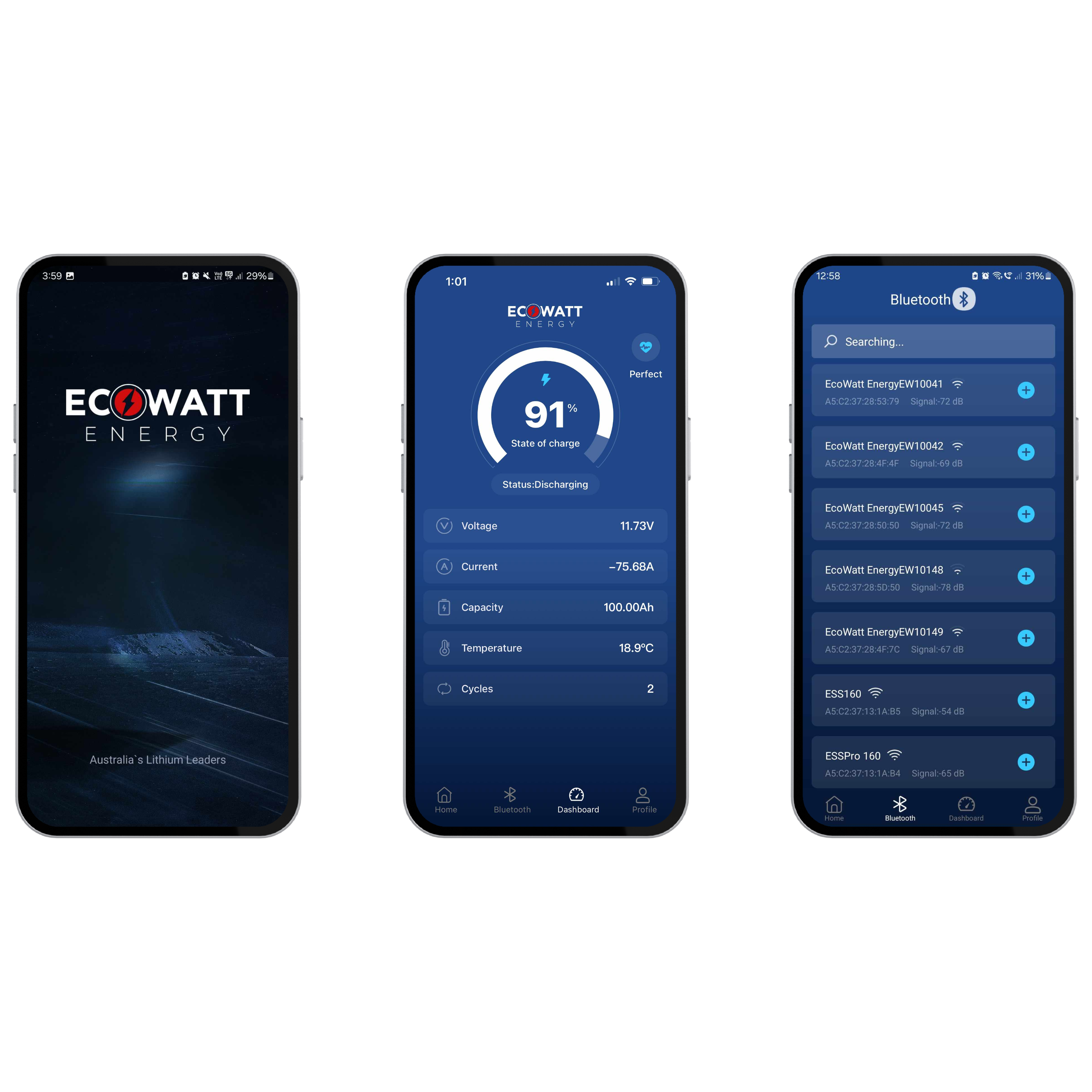

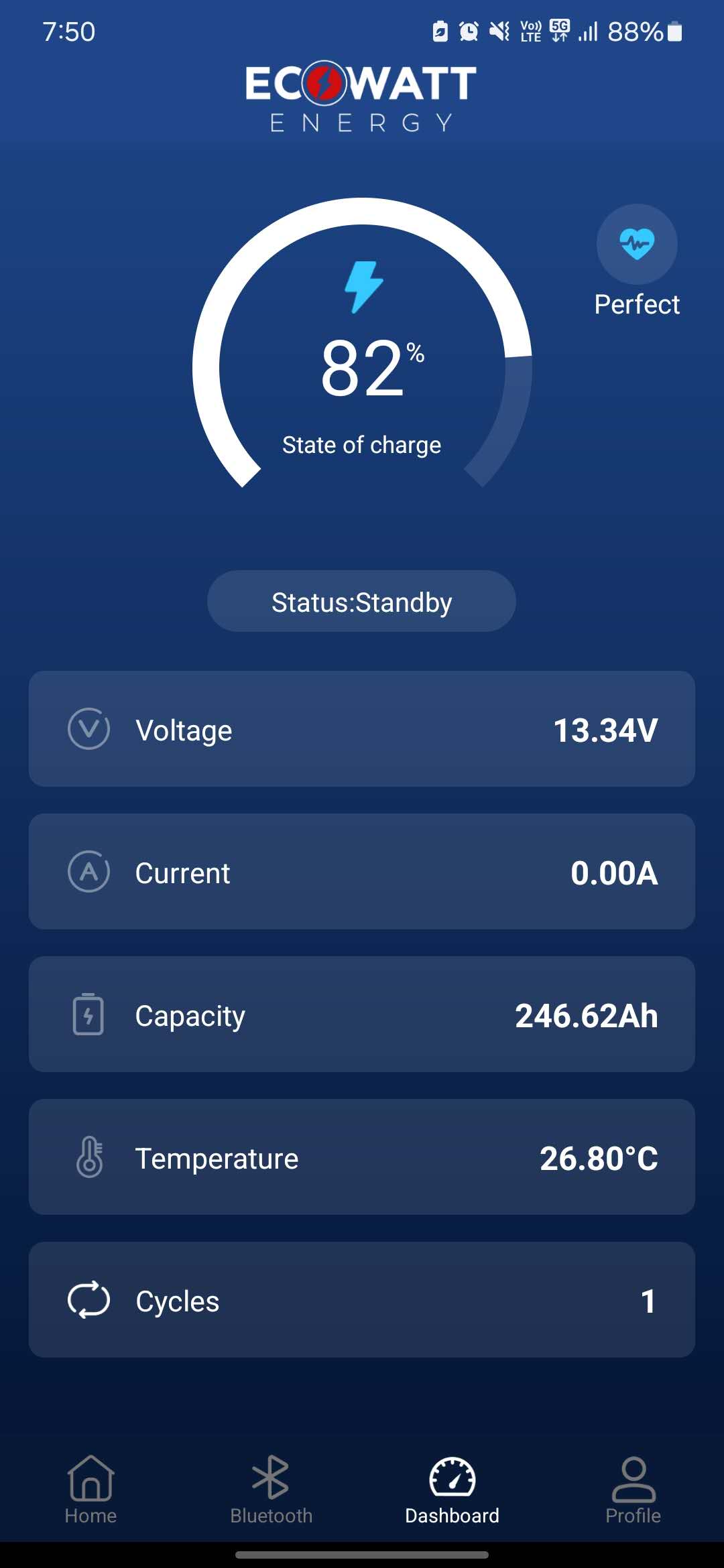

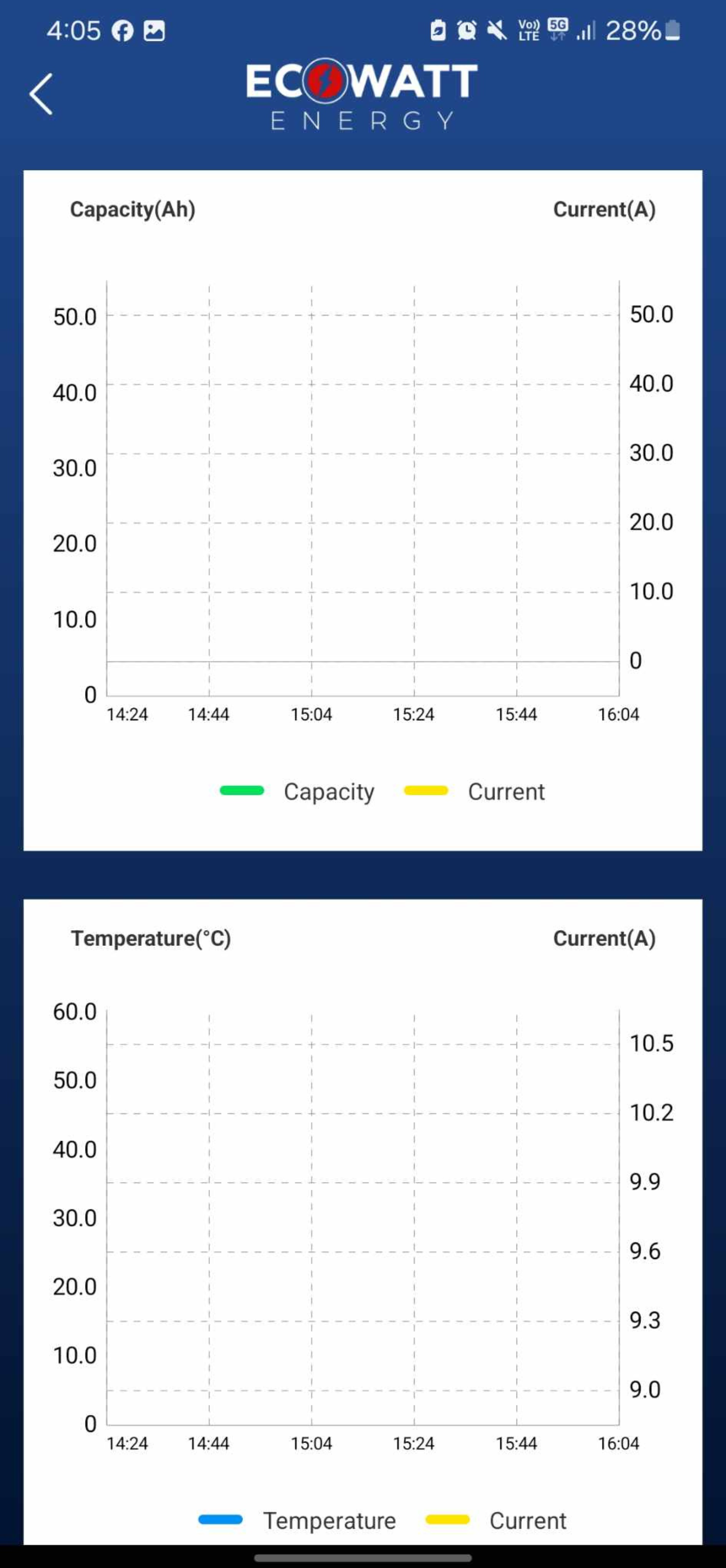

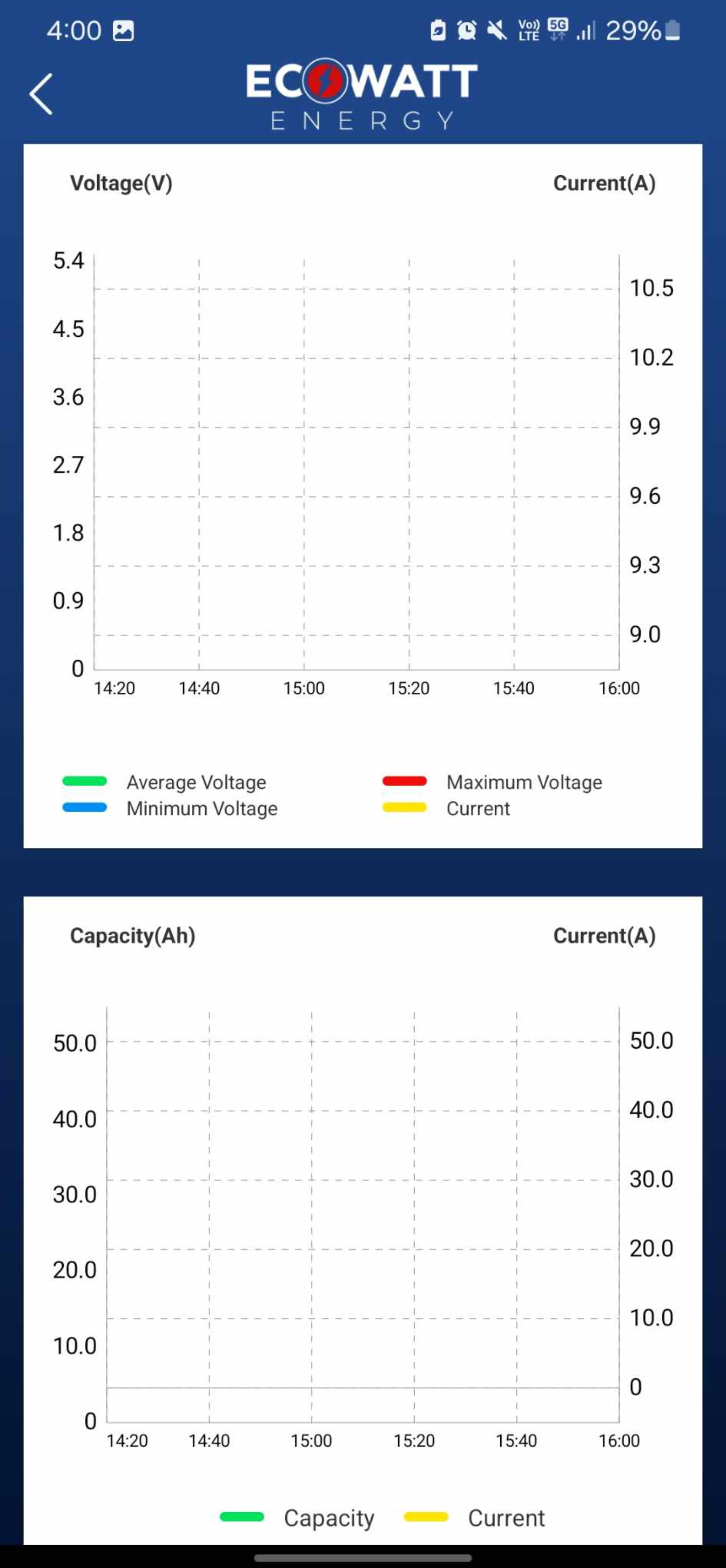

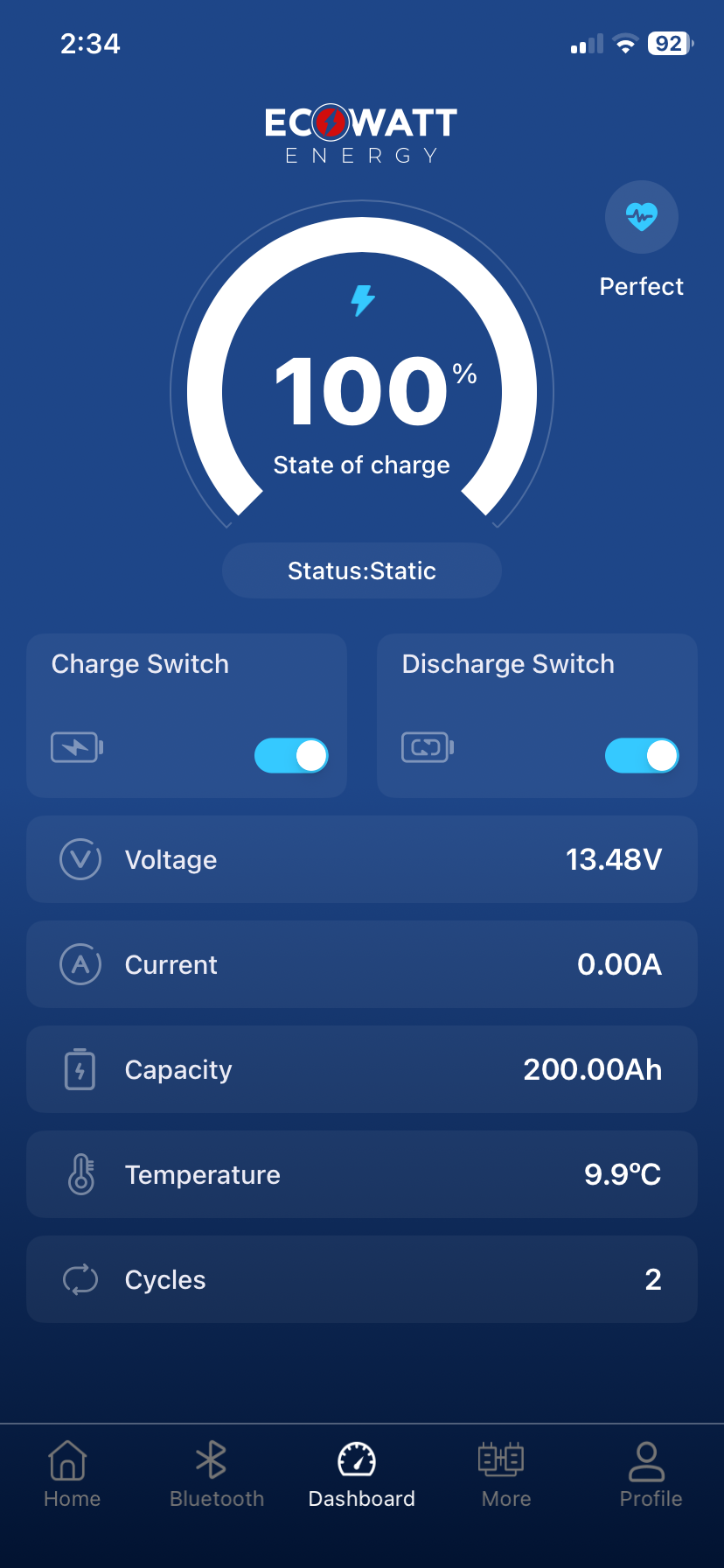

Bluetooth Monitoring
Stay in control with Bluetooth monitoring via the EcoWatt Energy Connect app. Track your battery’s charge levels, voltage, and overall performance in real time. Right from your smartphone, anytime.
Advanced JBD BMS Safety Features
Rest easy with the EcoStore 200’s advanced JBD BMS protection. Engineered to safeguard against overcharging, overheating, short circuits, and more, our intelligent BMS ensures safe, reliable performance in every condition.
IP67 Water and Dust Resistance
Built for all-weather reliability, the EcoStore 200 features an IP67 rating for complete protection against dust and water. From rain and mud to harsh dust conditions, this battery is designed to perform wherever your adventures take you.
5 Years Full Replacement Warranty
Backed by a true 5-year full replacement warranty, the EcoStore 200 is protected by an Australian warranty that puts you first. Unlike pro-rata warranties that leave you paying more as time goes on, ours guarantees a brand-new replacement if anything goes wrong. Simple, fair, and hassle-free.
Australian Family Owned
Proudly Australian family owned. At EcoWatt Energy, our vision is to make premium gear affordable for every Australian. We achieve this by streamlining and vertically integrating our supply chain, from sourcing A-grade cells to in-house design and quality control, allowing us to deliver exceptional performance and service without the inflated price tag.
