EcoStore PRO 628Ah 12V LiFePO4 Battery - (REPT Cells & JBD Bluetooth BMS) - ETA - MID JAN 26
SKU: ESPRO628
Preorder your ESPRO628 with Black Friday Sales Pricing Today! Please Note: Orders won't be dispatched until JAN 26.
Description

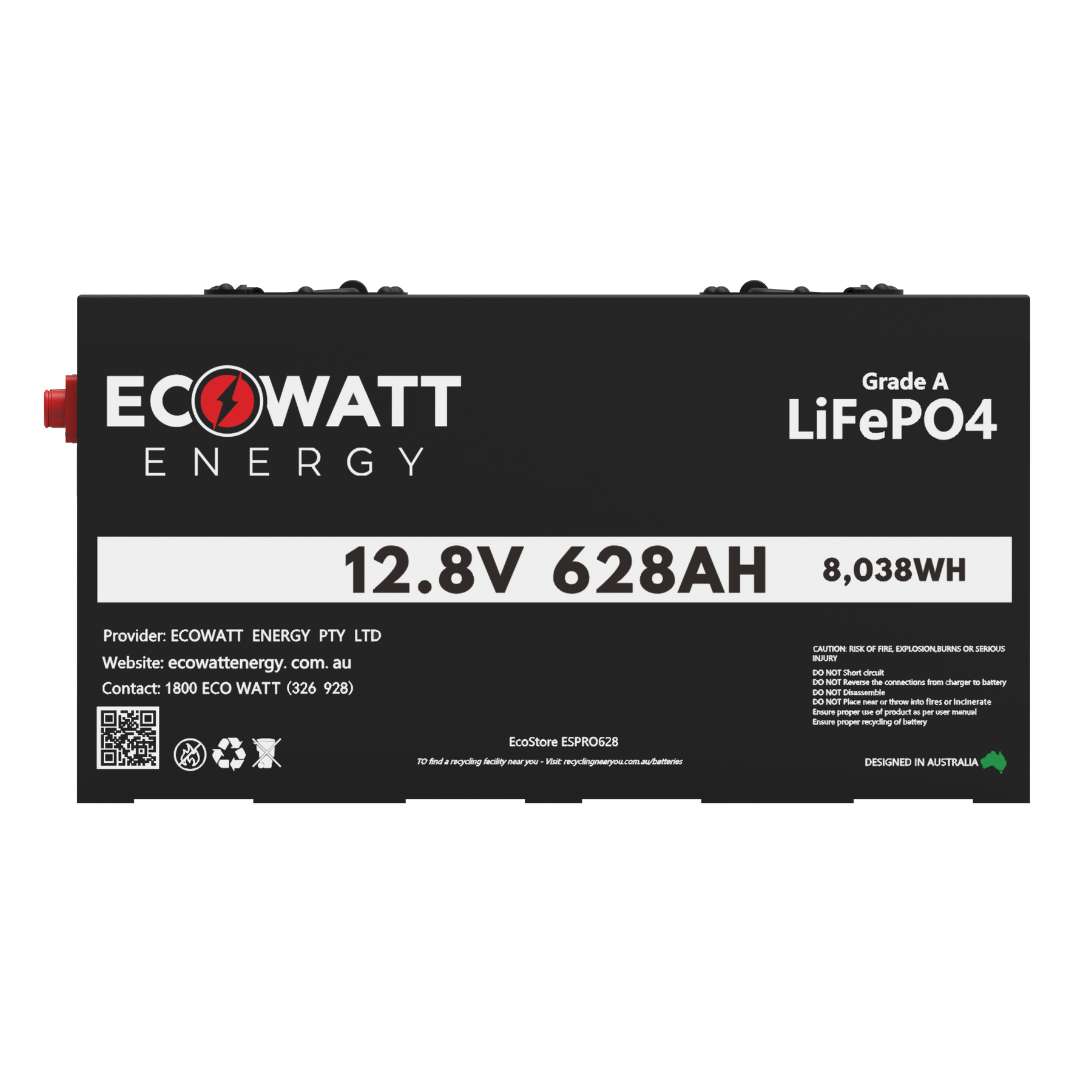

Introducing the EcoStore Pro 628Ah
Developed from decades of innovation and tested in real-world conditions, the EcoStore Slimline Pro 628 isn't just an upgrade—it's a significant advancement in lithium battery technology. Compared to traditional Li-ion batteries, the ESPRO628 has enhanced energy density, improved safety, faster charging times, a longer lifespan, and its compact design ensures easy integration into a variety of systems. These features make the EcoStore Pro 628 the top choice for critical applications where performance and dependability are paramount.
Power with peace of mind
Our EcoStore Pro 628 features Grade A REPT prismatic cell technology and a robust 300Ah Software-Controlled JBD Battery Management System. This setup enhances safety and provides comprehensive protection against common battery issues such as overcharging, overdischarging, overheating, or short circuits. With this battery, you can expect stellar performance and durability, even in tough conditions.
Specifications
Type of Battery: Lithium-Iron Phosphate (LiFePO4)
Standard Voltage: 12.8V
Usable Capacity: 628Ah (8038Wh)
Cycle Life: 6000 @ 80% DoD
Charging Cut-Off Voltage: 14.8±0.2V
Discharge Cut-Off Voltage: 9.0±0.2V
Over-Charge Recovery Voltage: 14±0.2V or Discharge ≥ 2A
Over-Discharge Recovery Voltage: 10.8±0.2V or Charge ≥ 2A
Max. Continous Charging: Current 300A (1C)
Max. Continous Discharging: Current 300A (1C)
Peak Discharge Rate (1.5s): 1240±250A (4C+)
Battery Pack Assembly Method: 4S2P
Cell Type: REPT Grade A 3.2V 314Ah LFP Prismatic Cell
BMS Brand: JBD Smart 300A-S Programmable BMS
Charging Type: CC/CV
Charging Temperature: -10 ~ 65°C
Discharging Temperature: -20 ~ 75°C
Charging Temp Protection: ≥65±5℃
Discharging Temp Protection: ≥75±5℃
Maximum Battery Connectivity: Unlimited in Parallel/Four in Series
Input/Output Port Type: M8
Dimensions: 500mmx346mmx267mm
Weight: 55KG
Case Material: Stainless Steel
Ip Rating: IP65
Fuctionalities:
- CANBUS/RS485 (Victron)
- ON/OFF Switch
- BMS Protection Reset Switch
- BMS Bypass Charging
- Venting Hole and Kit included for easy AS 3001.2 compliance
Certifications: IEC62619/UL1642A/UN38.3/ROHS
Warranty: 5 Year Full Replacement Warranty
Bluetooth BMS: Yes, via EcoWatt Energy Connect app
What's in the box
1x EcoStore Pro 628
1x 0V BMS Bypass Charger
2x M8*12 Bolts
2x M8*16 Bolts
1x Warranty Card
1x Charging Information Card
1x Bluetooth App Instructions
FAQs
What is an A-Grade Cell?
An A-Grade Cell refers to a battery cell that meets the highest standards of quality and performance. These cells are rigorously tested and graded based on their capacity, voltage, and overall reliability. At EcoWatt, we meticulously select only the highest quality A-Grade Cells to ensure superior cycle life, consistent performance, longer lifespan, and greater safety compared to lower-grade cells, making them the top choice for premium battery products.
How do I use the Bluetooth Monitoring Feature?
To use the Bluetooth Monitoring Feature, first download the EcoWatt Energy Connect app from the Apple App Store or Google Play Store. Then, open the app, connect to your battery, and start monitoring.
My Charger says the battery is fully charged, but the app is not showing 100% charge, why?
Sometimes, the State of Charge (SOC) display on the app may not be fully accurate until the battery has gone through a few full charge and discharge cycles. The BMS needs time to 'learn' the battery’s parameters and adjust accordingly before the Bluetooth monitoring provides precise readings.
What are your Recommended Charger/Shunt Settings?
- Charged voltage: 14v
- Bulk charging voltage: 14.2v
- Float voltage: 13.5v
- Storage voltage: 13.3v
- Discharge floor: 10%
- Tail current: 1%
- Peukert exponent: 1.01
- Charge efficiency factor: 99%
- Current threshold: 0.1A
- Charge detection and Time to go averaging period: These can remain unchanged
Can I use the EcoStore PRO 628 under the bonnet?
No, it is not recommended to use the EcoStore Pro 628 under the bonnet. We advise against using our LiFePO4 batteries for under bonnet applications due to their lower thermal tolerance compared to other battery types, such as lead-acid or AGM. The engine compartment can reach high temperatures, particularly in demanding conditions or during extended use, which can degrade the battery's performance, lifespan, and safety.
Do you offer a Satisfaction Guarantee?
Not 100% satisfied? No stress! Return your undamaged EcoWatt products for ANY reason, within 30 days, and you'll receive a refund, no questions asked!
What are your delivery options?
Enjoy reliable, convenient & FREE shipping on all orders Australia-wide. We offer a fast 24-hour dispatch turnaround time, so you can get your order in no time!
Please Note: Due to postage restrictions with Lithium/LiFePO4 batteries, your EcoWatt Product will be shipped in its original UN38.3 certified packaging from our factory.
Accessories Compatibility/Recommendations
1. AC-DC Chargers / Inverter-Chargers
These devices allow your system to draw from AC mains (shore power, generator, grid) and convert to DC to charge your batteries
Recommended Models:
Victron MultiPlus / MultiPlus II inverter/charger series
Victron Blue Smart series
support custom charging profiles for lithium (LiFePO4) and allow easy monitoring and updates via the VictronConnect app.
2. DC-DC Converters / Chargers
DC-DC chargers are used mainly when you want to safely charge your battery bank from another DC source (for instance, from an alternator).
Recommended Models:
Victron Orion‑Tr Smart Series DC‑DC Charger
Victron Orion‑XS Series DC‑DC Charger
These are excellent if you have a “start battery + house battery” separation
3. MPPT (Maximum Power Point Tracking) Solar Charge Controllers
MPPT controllers extract the maximum power from solar PV panels, converting varying panel voltages into optimal charging currents for the battery.
Recommended Models:
Victron SmartSolar MPPT Series - Bluetooth Compatible
Victron BlueSolar MPPT Series - Need Separate Bluetooth Dongle.
4. Shunt / Battery Monitoring
A shunt-based battery monitor can be used to measure state-of-charge, energy used, and input/output flows.
Recommended Model:
Victron SmartShunt - small, accurate, Bluetooth-enabled
Not on this list?
Any lithium-compatible accessory from brands like Enerdrive, Redarc, Renogy, Itechworld, or Kickass Products will also work just fine as well.
Place your order before 10:00am for same day dispatch
Not entirely satisfied with your purchase? You can return it within 30 days
Let customers speak for us
Delivered when stated Installed seems to be good so far
Happy with this product love the big boy 230ah can’t wait to test it all out
Installed the 230ah slimline battery in the back of my Amarok and fits perfectly against the canopy front wall. Great product and an excellent company to deal with.
Righto I have just upgraded my battery bank with eco lithium & doing the job as expected . So what I really like is being able to read the performance via the Bluetooth connectivity app . The purchase & delivery was seamless & with some research I believe I found the best value particularly with the comprehensive warranty compared to other reputable brands anyways happy customer.
Good quality feel, and a very good price
Absolutely wrapped with the new purchase.
Fantastic build quality and the Bluetooth battery monitor accessed via the EcoWatt App is great.
Service from the Ecowatt crew is second to none.
Have had batteries installed and very happy with them
Great service with a rapid delivery. Battery installed and connection to Bluetooth very simple
Highly recommend
Great batteries and the Free Laptop charger free gift is really good
Best battery ever
I recently purchased a 300 amp hour battery and I was surprised the people from Ecowatt energy made sure and was able to run everything and the process of setting it up on my phone
Our 300 batt Size is the same as 100 perfect
Good quality battery works well easy fitment great product.
The Ecowatt batteries are absolutely Excellent quality they 100% give Enerdrive or any of the other so called premium batteries a run for there money. Excellent quality, Excellent price, top notch bms. Ecowatt themselves are absolutely awesome their Customer service is Excellent second to none and the warranty on the batteries absolutely outstanding. Definitely a returning customer.
Long-Lasting Cycle Life
With a verified cycle life exceeding 6,000 cycles, the EcoStore Pro 628 is built to provide reliable power year after year. Designed for durability and consistency, it eliminates the concern of frequent replacements, giving you confidence and peace of mind for all your energy needs.
REPT A-Grade Cells
Powered by brand-new REPT 314AH A-Grade cells, the EcoStore Pro 628 is engineered for maximum reliability and long-term durability, making it the perfect choice for both everyday use and high-demand applications.
Every battery is carefully batch-tracked and precision-matched, with cell voltage variance maintained within ±0.001V. This uncompromising attention to detail ensures consistent performance, exceptional efficiency, and peace of mind with every cycle.
Ultra-Compact Design
Maximise your storage space with the EcoStore Pro 628’s ultra-compact design. Engineered for tight installations, it delivers exceptional power without taking up unnecessary room. Making it the ideal choice for RVs, boats, and off-grid systems where every inch matters.
Built with a durable stainless steel construction, the Ecostore Pro 628 offers superior strength, corrosion resistance, and long-term reliability in demanding environments.

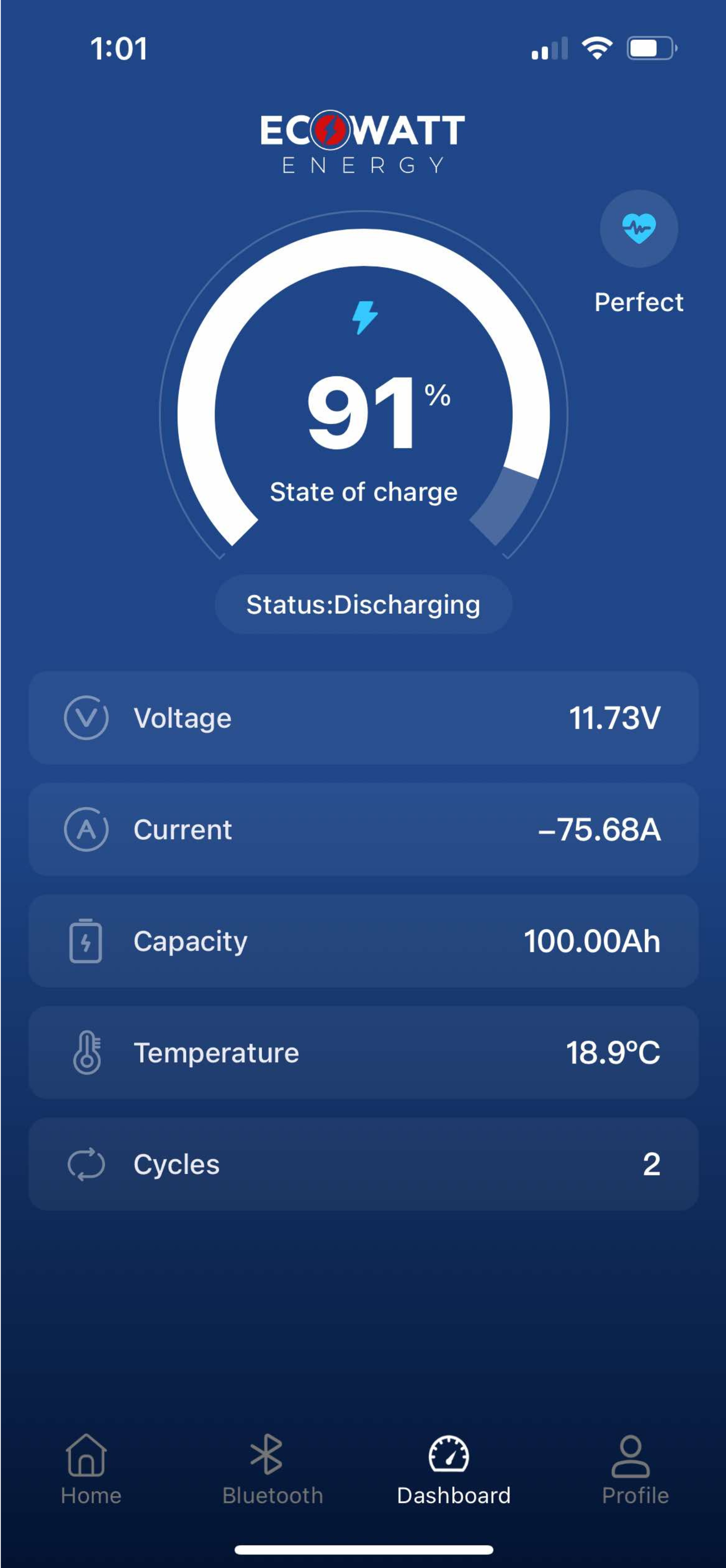

Bluetooth Monitoring
Stay in control with Bluetooth monitoring via the EcoWatt Energy Connect app. Track your battery’s charge levels, voltage, and overall performance in real time. Right from your smartphone, anytime.
Advanced JBD BMS Safety Features
Rest easy with the EcoStore Pro 628’s advanced JBD BMS protection. Engineered to safeguard against overcharging, overheating, short circuits, and more, our intelligent BMS ensures safe, reliable performance in every condition.
Comprehensive Features
The Ecostore Pro 628 delivers a comprehensive suite of advanced features designed for high-end systems. It supports full CANBUS/RS485 communication, enabling seamless integration with Victron systems

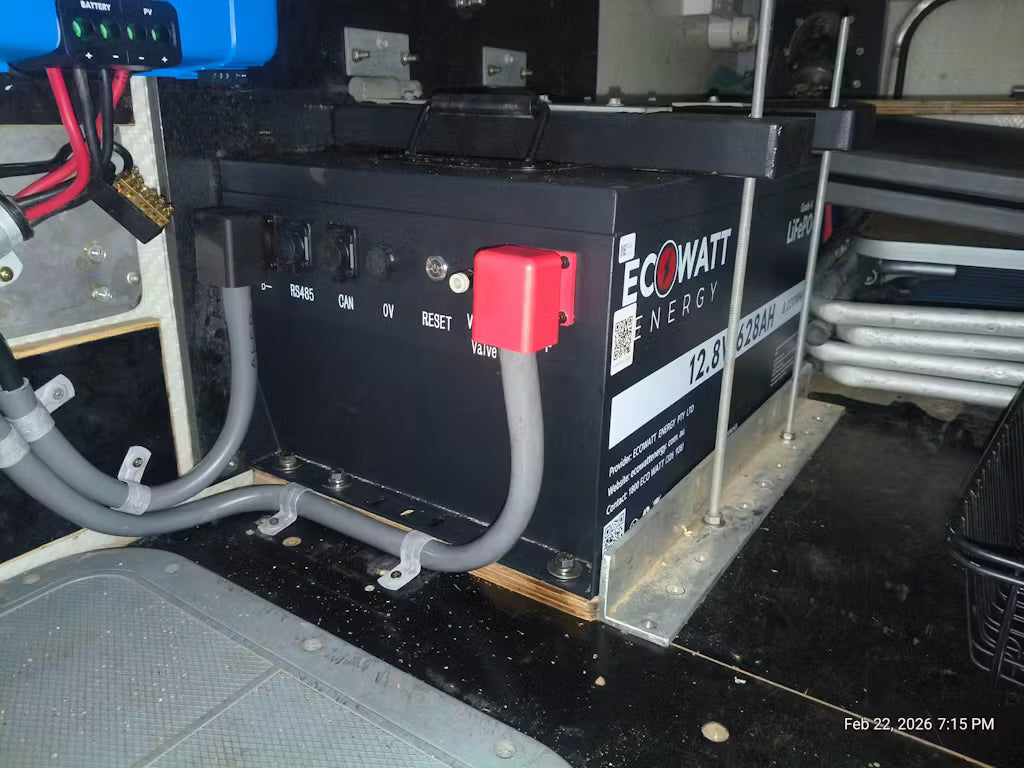

The Ecostore Pro 628 also includes a physical on/off switch, a BMS protection-reset function, and BMS bypass charging for recovery charging in overdischarged scenarios, with a compatible charger included.
Engineered as an all-in-one, fully featured solution, the EcoStore Pro 628 offers exceptional control, safety, and system integration in a single high-capacity battery. It also includes a dedicated venting hole and vent kit, making compliance with AS 3001.2 straightforward and installer-friendly.
IP65 Water and Dust Resistance
Built for all-weather reliability, the EcoStore Pro 628 features an IP65 rating for complete protection against dust and water. From rain and mud to harsh dust conditions, this battery is designed to perform wherever your adventures take you.
5 Years Full Replacement Warranty
Backed by a true 5-year full replacement warranty, the EcoStore Pro 628 is protected by an Australian warranty that puts you first. Unlike pro-rata warranties that leave you paying more as time goes on, ours guarantees a brand-new replacement if anything goes wrong. Simple, fair, and hassle-free.
