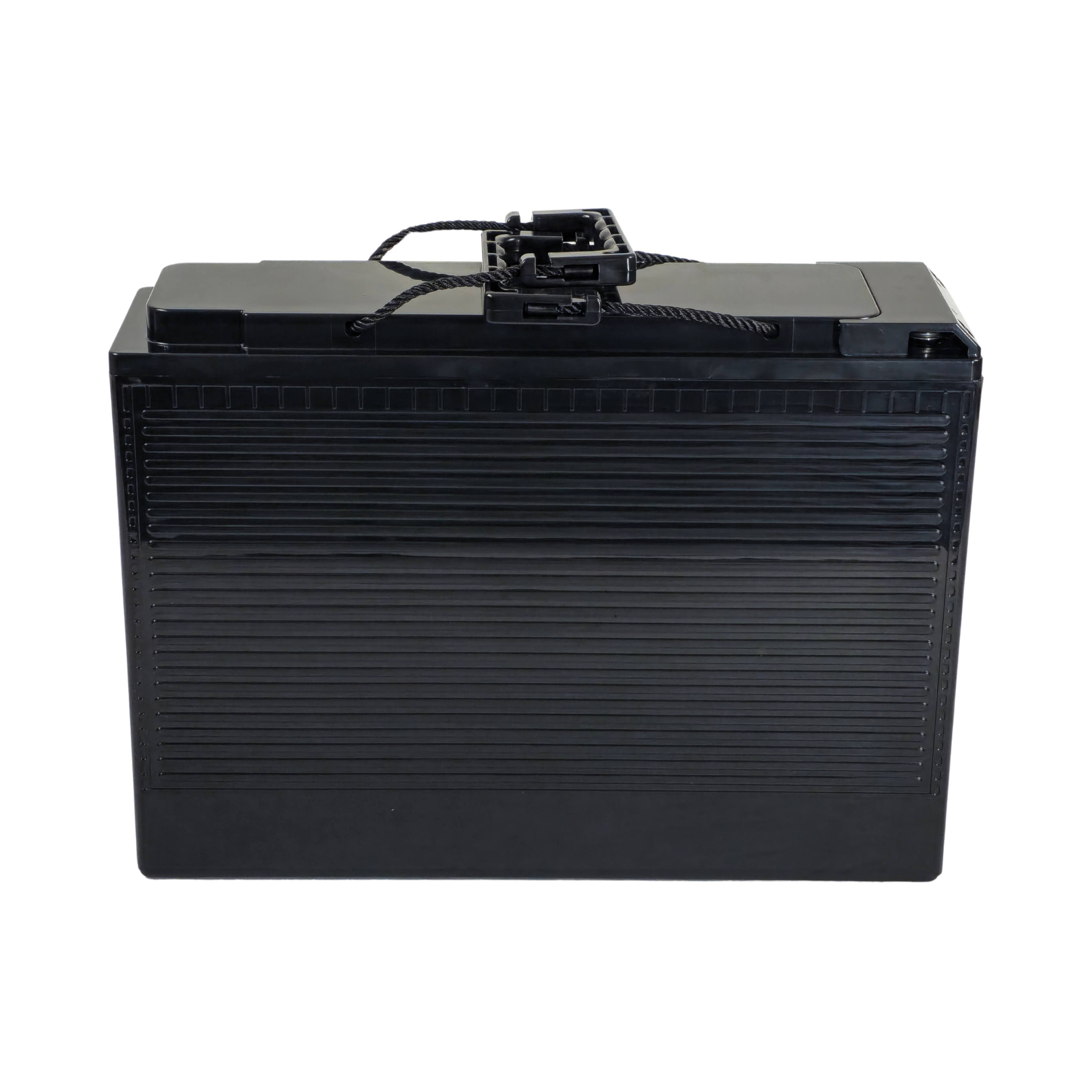

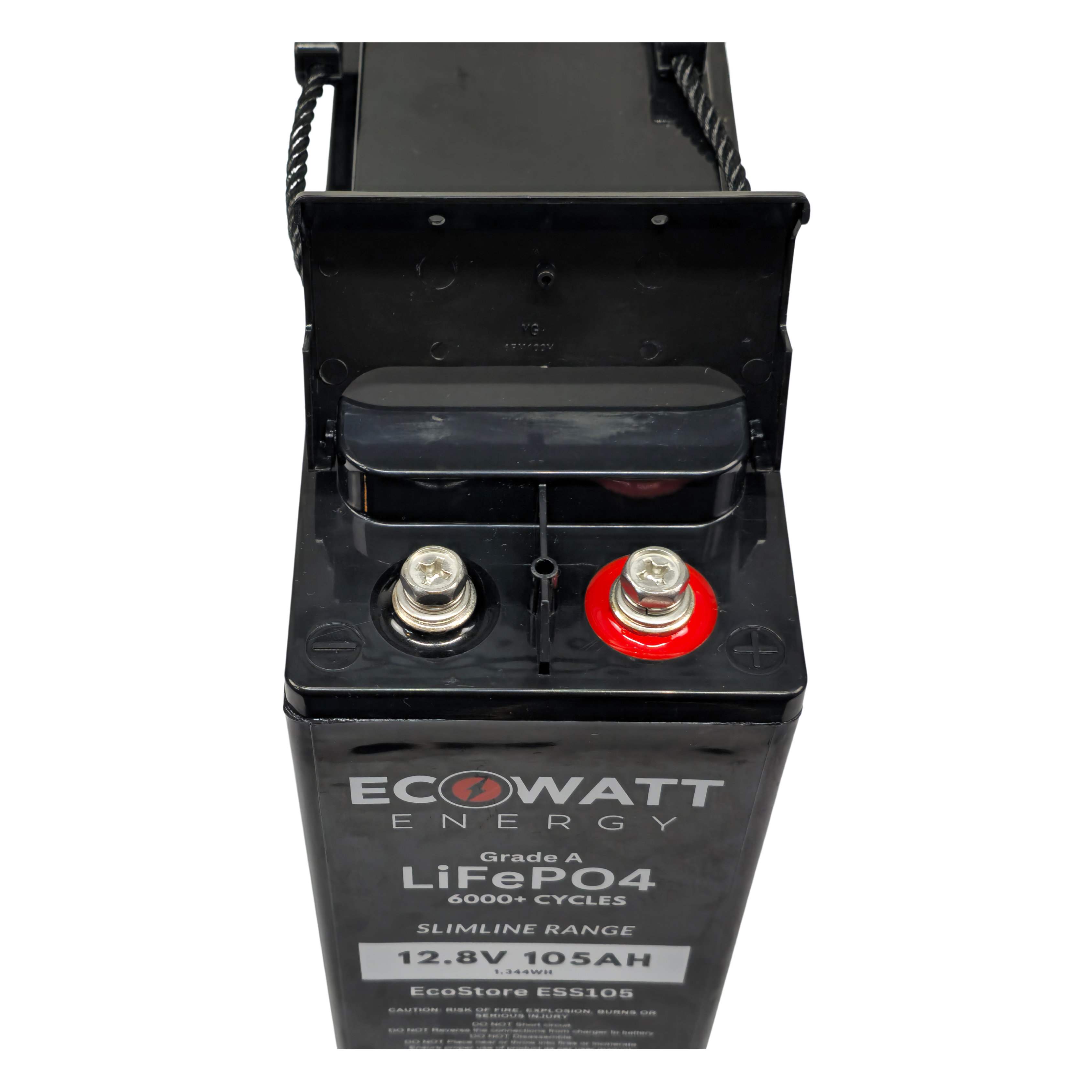

EcoStore Slimline 105Ah 12V LiFePO4 Battery - (EVE Cells) & (Bluetooth BMS - JBD)
Description
Introducing the EcoStore Slimline 105Ah
Developed from decades of innovation and tested in real-world conditions, the EcoStore Slimline 105 isn't just an upgrade—it's a significant advancement in lithium battery technology. Compared to traditional Li-ion batteries, the ESS105 has enhanced energy density, improved safety, faster charging times, a longer lifespan, and its compact design ensures easy integration into a variety of systems. These features make the EcoStore Slimline 105 the top choice for critical applications where performance and dependability are paramount.
Power with peace of mind
Our EcoStore Slimline 105 features Grade A EVE prismatic cell technology and a robust 100Ah Software-Controlled Battery Management System. This setup enhances safety and provides comprehensive protection against common battery issues such as overcharging, overdischarging, overheating, or short circuits. With this battery, you can expect stellar performance and durability, even in tough conditions.
Specifications
Type of Battery: Lithium-Iron Phosphate (LiFePO4)
Standard Voltage: 12.8V
Usable Capacity: 105Ah (1344Wh)
Cycle Life: 4000 @ 80% DoD
Charging Cut-Off Voltage: 14.8±0.2V
Discharge Cut-Off Voltage: 9.0±0.2V
Over-Charge Recovery Voltage: 14±0.2V or Discharge ≥ 2A
Over-Discharge Recovery Voltage: 10.8±0.2V or Charge ≥ 2A
Max. Continous Charging: Current 100A (1C)
Max. Continous Discharging: Current 100A (1C)
Peak Discharge Rate (1.5s): 330±80A (3C+)
Battery Pack Assembly Method: 4S1P
Cell Type: EVE Grade A 3.2V 105Ah LFP Prismatic Cell
BMS Brand: JBD Smart 100A-S Programmable BMS
Charging Type: CC/CV
Charging Temperature: -10 ~ 65°C
Discharging Temperature: -20 ~ 75°C
Charging Temp Protection: ≥65±5℃
Discharging Temp Protection: ≥75±5℃
Maximum Battery Connectivity: Unlimited in Parallel/Four in Series
Input/Output Port Type: M8

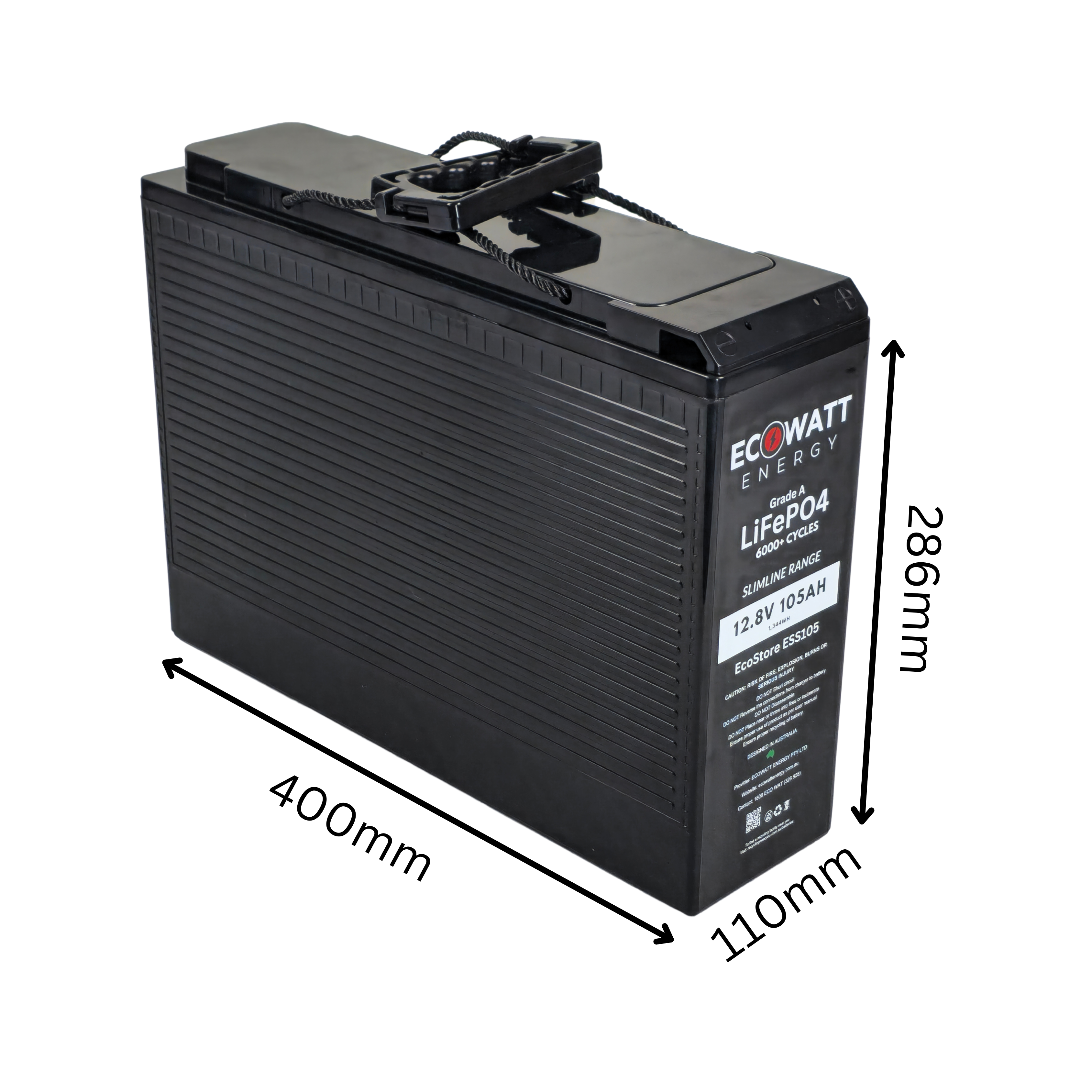

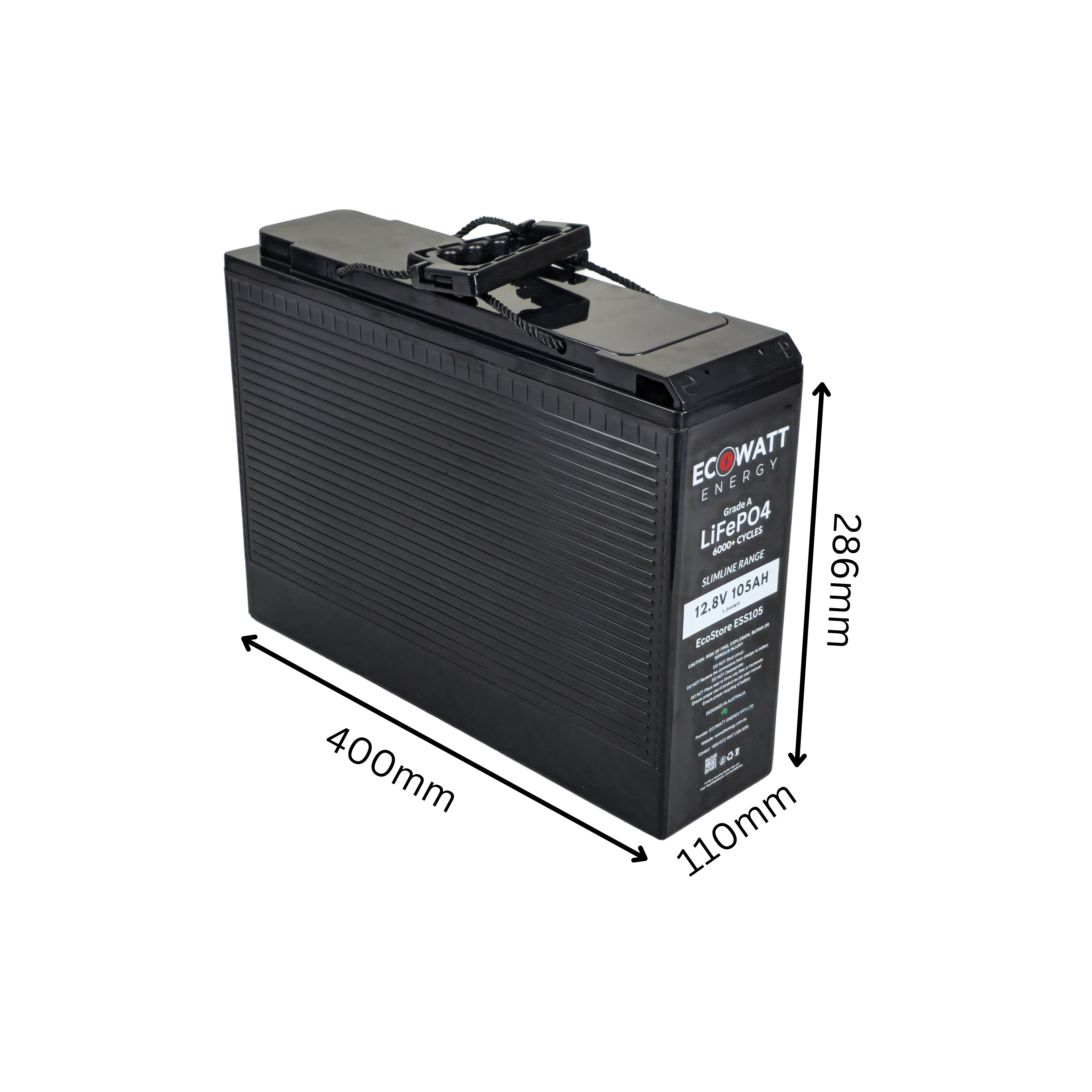

Dimensions: 400x110x286mm
Weight: 11.5KG
Case Material: ABS
Ip Rating: IP67
Certifications: IEC62619/UL9450A/UN38.3/ROHS
Warranty: 5 Year Full Replacement Warranty
Bluetooth BMS: Yes, via EcoWatt Energy Connect app
What's in the box
1x EcoStore Slimline 105
1x Warranty Card
FAQs
What is an A-Grade Cell?
An A-Grade Cell refers to a battery cell that meets the highest standards of quality and performance. These cells are rigorously tested and graded based on their capacity, voltage, and overall reliability. At EcoWatt, we meticulously select only the highest quality A-Grade Cells to ensure superior cycle life, consistent performance, longer lifespan, and greater safety compared to lower-grade cells, making them the top choice for premium battery products.
How do I use the Bluetooth Monitoring Feature?
To use the Bluetooth Monitoring Feature, first download the EcoWatt Energy Connect app from the Apple App Store or Google Play Store. Then, open the app, connect to your battery, and start monitoring.
My Charger says the battery is fully charged, but the app is not showing 100% charge, why?
Sometimes, the State of Charge (SOC) display on the app may not be fully accurate until the battery has gone through a few full charge and discharge cycles. The BMS needs time to 'learn' the battery’s parameters and adjust accordingly before the Bluetooth monitoring provides precise readings.
What are your Recommended Charger/Shunt Settings?
- Charged voltage: Around 13.5V, but you can double-check this once the battery is fully charged.
- Bulk charging voltage: Between 14.4V to 14.6V
- Absorption voltage: Between 14.4V to 14.6V
- Float voltage: Around 13.5V
- Storage voltage: Similar to the charged voltage; 13.5V
- Discharge floor: It can be set above 20%. This setting is more about your personal preference for the charger than the battery. The higher this percentage, the better. We don't recommend going below 20%.
- Tail current: Anywhere between 2-4% is fine. Once the charging current drops below this range, the battery is nearly fully charged.
- Peukert exponent: This is mostly relevant for lead-acid batteries. For LiFePO4, setting it to 1.05 is standard
- Charge efficiency factor: Set this to 99%
- Current threshold: 0.1A
- Charge detection and Time to go averaging period: These can remain unchanged
- State of charge (SOC) synchronization: We recommend synchronizing the SOC to 100% once you've fully charged the battery
Can I use the EcoStore 105 Slimline under the bonnet?
No, it is not recommended to use the EcoStore Slimline 105 under the bonnet. We advise against using our LiFePO4 batteries for under bonnet applications due to their lower thermal tolerance compared to other battery types, such as lead-acid or AGM. The engine compartment can reach high temperatures, particularly in demanding conditions or during extended use, which can degrade the battery's performance, lifespan, and safety.
Do you offer a Satisfaction Guarantee?
Not 100% satisfied? No stress! Return your undamaged EcoWatt products for ANY reason, within 30 days, and you'll receive a refund, no questions asked!
What are your delivery options?
Enjoy reliable, convenient & FREE shipping on all orders Australia-wide. We offer a fast 24-hour dispatch turnaround time, so you can get your order in no time!
Please Note: Due to postage restrictions with Lithium/LiFePO4 batteries, your EcoWatt Product will be shipped in its original UN38.3 certified packaging from our factory.
Place your order before 10:00am for same day dispatch
Not entirely satisfied with your purchase? You can return it within 30 days
Let customers speak for us
Was very happy with the results and will probably purchase again
My new EcoWatt 300ah batterys have been amazing, No problems with low power now and they fitted into the original battery boxes. I only had to drill new holes into the side of the boxes for the clamps ,and the EcoWatt app let's me know exactly where the batterys are at..Very happy camper...😁
Absolutely love the battery (200AH). Last minute decision to purchase before our trip to WA. Arrived ahead of time. So was able to install and hook up the DCDC charger. It would charge on the longer legs, and be able to run form4 or 5 days off charge. Was and has been absolutely faultless.
Thanks so much from ordering time to after our trip. Very highly recommend these batteries.
Slimline, put together with useable points unlike other brands
PERFECT
Packing was good battery looks great and has performed great so far
Quality build
I purchased the Slimline PRO 230Ah 12V LiFePO4 Battery - (EVE Cells) & (Bluetooth BMS - JBD) and installed it on the front wall of my canopy, that weekend I went away camping. The battery performed as it should, ran a 60ltr and a 30ltr fridge for the 4 days had a 250w solar panel to top up 2 of the days were overcast but the lowest the battery got down to was 55% and the highest temp was 30.5C and it was a 32C day. The battery lives in my canopy as I use it to run a 30ltr fridge and battery charger for my tools for work so far so good.
Cheers Wayne.
Order and received in the same week. Great service
I’ve ordered 2qty 300amp batteries down to the fantastic experience with both customer service engagement, product quality and performance . I previously ordered a slimline 240ah battery.
The new batteries absolutely look fantastic in my caravan hold the voltage very well when discharging at a high current. I run all Victron gear for for my battery management which then paired with these two fantastic batteries. I used to run 3qty Itec work 120x batteries and the voltage on them would always drop when I was using or putting a big load with the Victron Muilt plus 2
Cheers guys, thanks again for a fantastic service
I haven't been using this battery long but so far. I'm finding it great. After running my car fridge all night, it still sits around the 90% the next day. And a 20 min drive topped it up again. I was away for a week, and it worked a treat. Yet to try my induction cook top. excited though.
Great service, super quick delivery, Battery's perfect for job required.
Great product and good postage
I brought the 230 super slim battery for my outback adventure, the battery has done everything I needed with plenty of power. Thanks heaps guys
This is a beast of a battery. Runs my oven, big inverter and induction cooktop on a weekend away. I love that it is capable of 200a discharge. The app and BMS make it so easy to monitor my charge and consumption. The battery, being shorter in length to most other 200AH batteries, makes it fit perfectly in the void behind my fridge. Great value and highly recommended.
Very impressed with this product weight, size and quickness of delivery. And price
I have only cycled the battery three times since the install in the camper trailer but now can easily last four days running the fridge, lighting, small appliance charging, CPAP and water pump with minimal solar input (forest camping). I can't comment on the load capability as I am not running an inverter, but the battery has met expectations so far. Bluetooth works well.
Long-Lasting Cycle Life
With a cycle life of over 4000 cycles, the EcoStore Slimline 105 is engineered to deliver consistent power without the worry of frequent replacements, making it a dependable choice for all your energy needs.
EVE A-Grade Cells
Experience the highest standard of energy storage with the EcoStore Slimline 105. Crafted with A-Grade cells, this battery provides maximum reliability and durability, making it a dependable choice for both everyday use and demanding applications.
Ultra-Compact Design
Maximize your storage space with the EcoStore Slimline 105's ultra-compact design. Perfect for tight spaces, this battery delivers powerful performance without compromising on space, making it an ideal choice for RVs, boats, and off-grid systems where every inch counts.

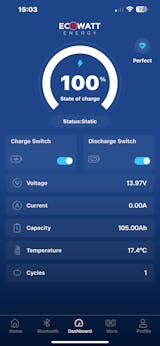

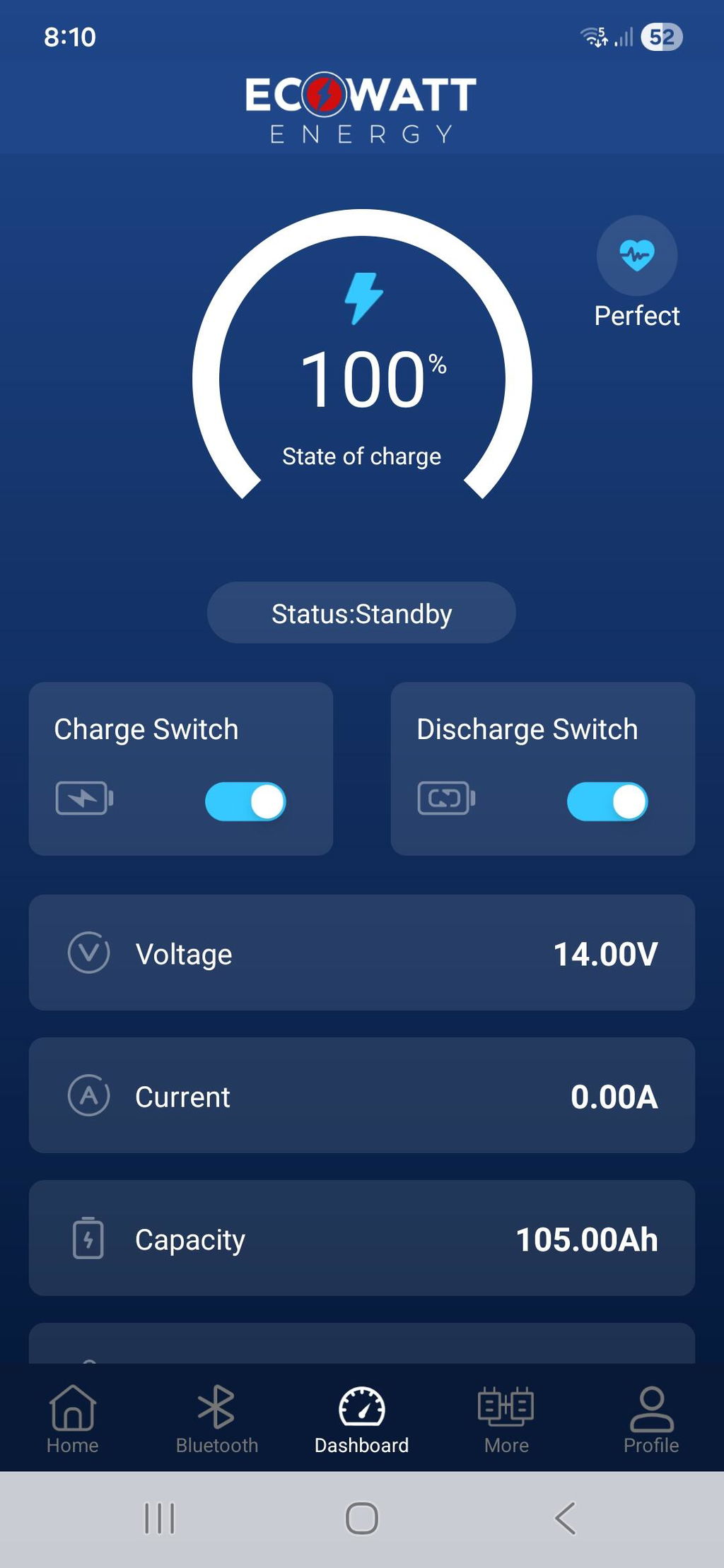

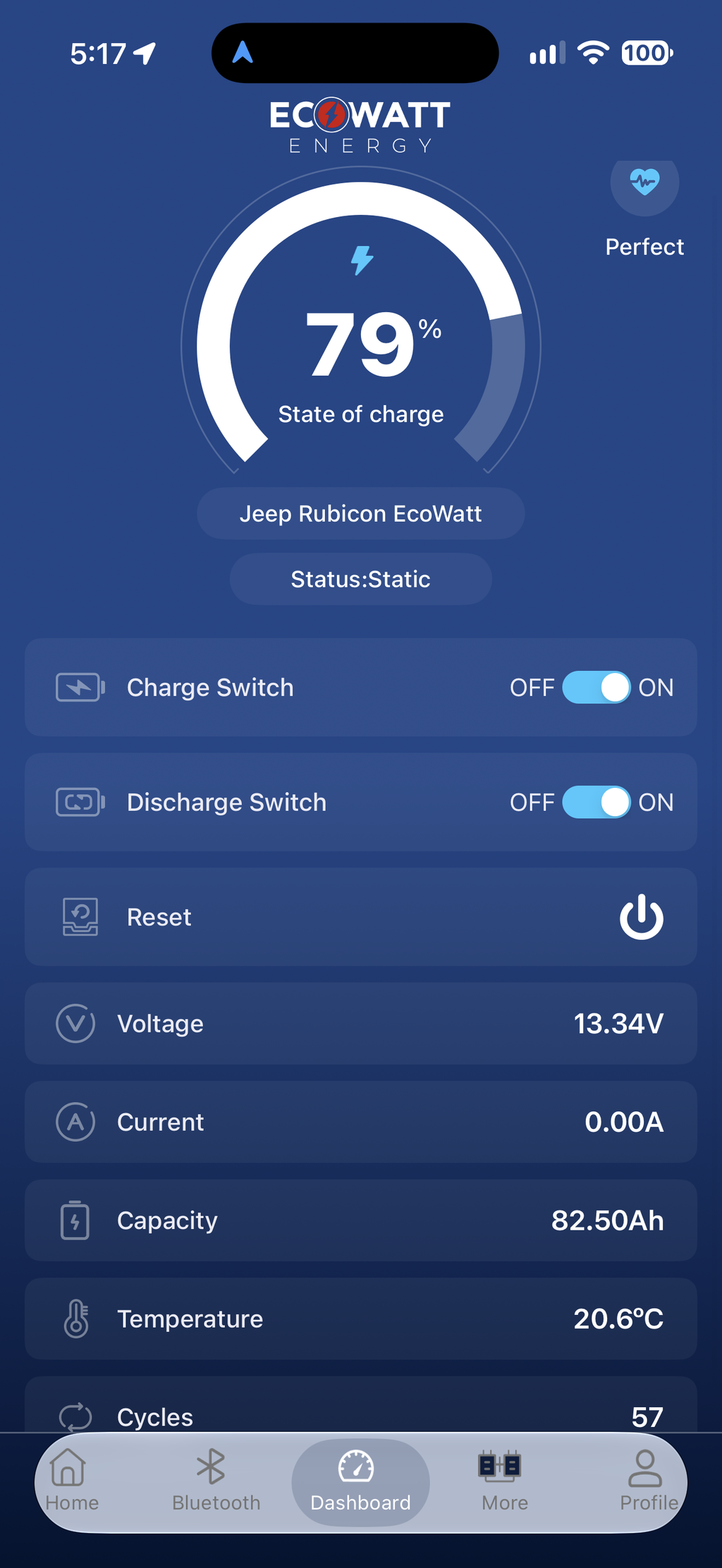

Bluetooth Monitoring

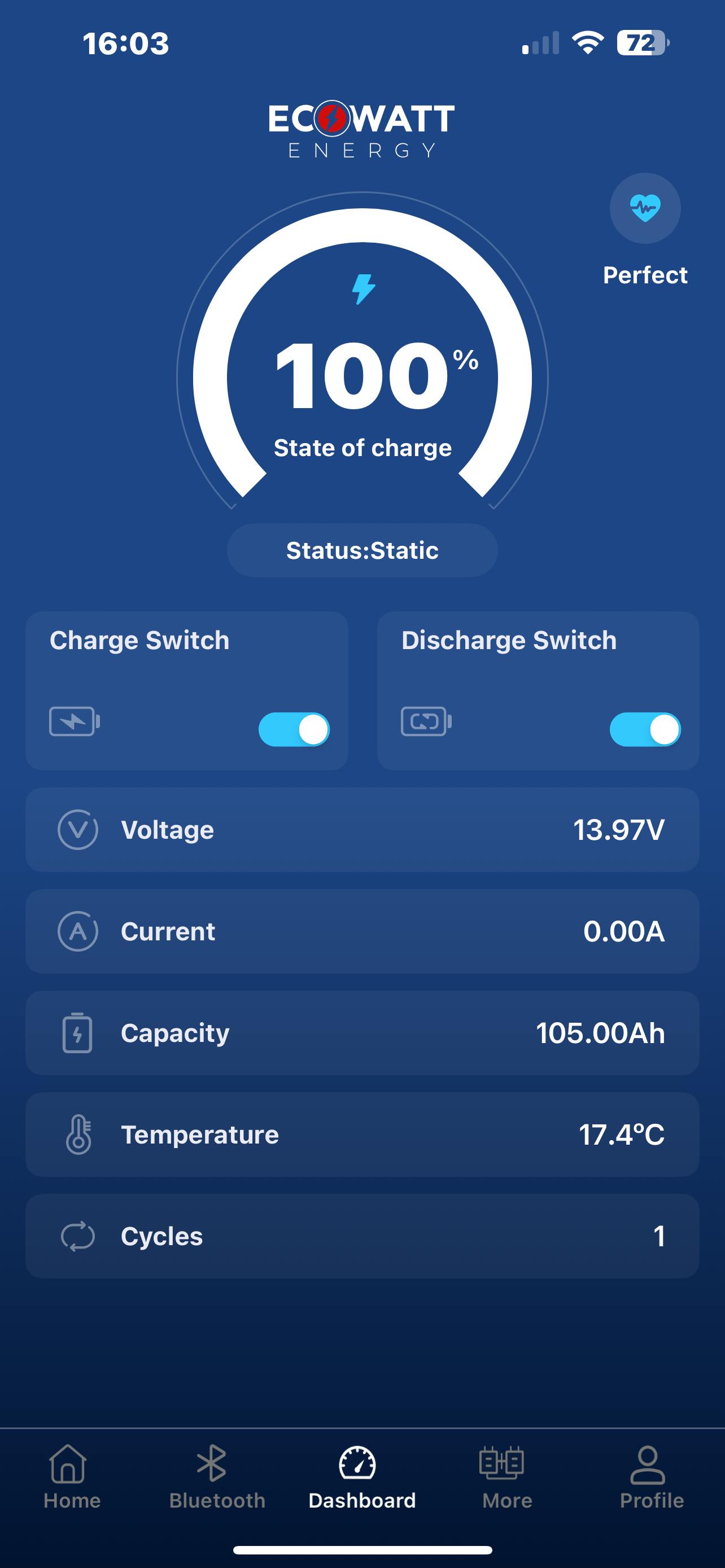

Stay connected to your power system with Bluetooth monitoring through the EcoWatt Energy Connect app. Easily check your battery’s status, including charge levels, voltage, and more, all from your smartphone, wherever you are.
Advanced BMS Safety Features
Rest easy knowing your power system is protected with the EcoStore Slimline 105’s Advanced BMS safety features. Designed to prevent overcharging, overheating, short circuits, and much more. Our BMS ensures safe and reliable operation under all conditions.
IP67 Water and Dust Resistance
The EcoStore Slimline 105 is engineered for all-weather performance, featuring an IP67 rating that guarantees protection from dust and water. Whether you're dealing with rain, mud, or dust, this battery is ready to go wherever your adventures take you.
